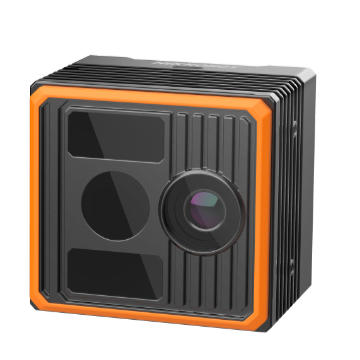

Name: HIKROBOT DT Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DT04WFE
Availability: InStock

Product introduction

Functional characteristics

Using time-of-flight technology, high depth map integrity, good real-time performance
Multiple VCSEL projection, strong energy, strong ability to resist ambient light, and stable imaging
Large Field of View design, wide field of view coverage
IP67 High protection level, wide application range
Factory complete internal reference calibration, multi-Platform SDK provides, convenient and fast secondary development

Ordering Model

MV-DT04UFE

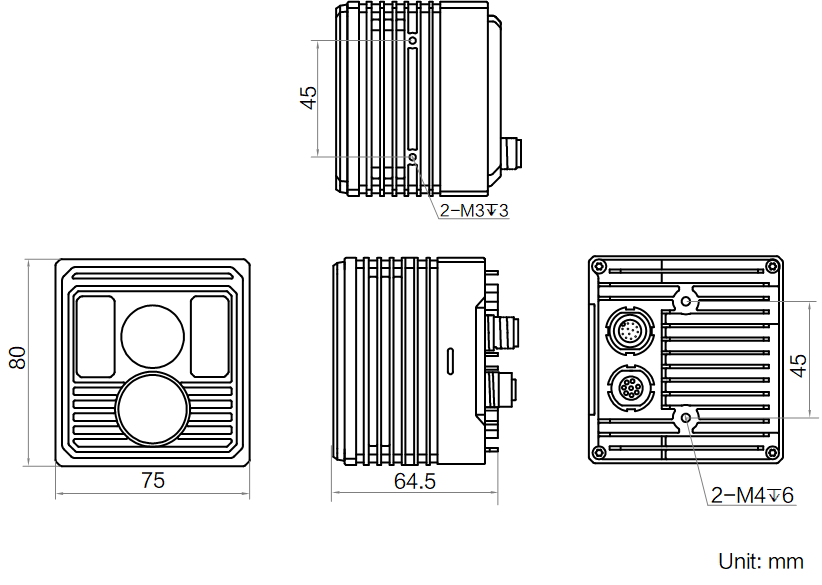

Dimensions

* The data involved in the product may cause Differences and due to environmental and other factors, and the company will not bear the consequences.

MV-DT04UFE

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-DT04UFE

Model

Model	MV-DT04UFE
Name	TOF Smart Stereoscopic Camera

Performance

Working Range	0.5 m ~ 5 m
Typical Field of View	3800 mm × 2800 mm @ 2 m
Field of View	Depth Map Field of View:108° x 82° RGBField of View:109° x 82°
Measurement accuracy	15 mm @ 2 m;20 mm @ 3.5 m
Z-Axis Repeatability	±(10+0.5%depth1)mm
Resolution	1536 × 1088@RGB diagram 640 × 480@Depth map
Max. Frame Rate	30 fps
Data Type	Original map, intensity map, depth map
Plot delay time	38 ms2

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	10 W @ 24 VDC

Mechanical

Dimensions	80 mm × 75 mm × 64.5 mm
Weight	Approximately 0.49 kg
IP Rating	IP67
Temperature	Operating Temperature 0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
