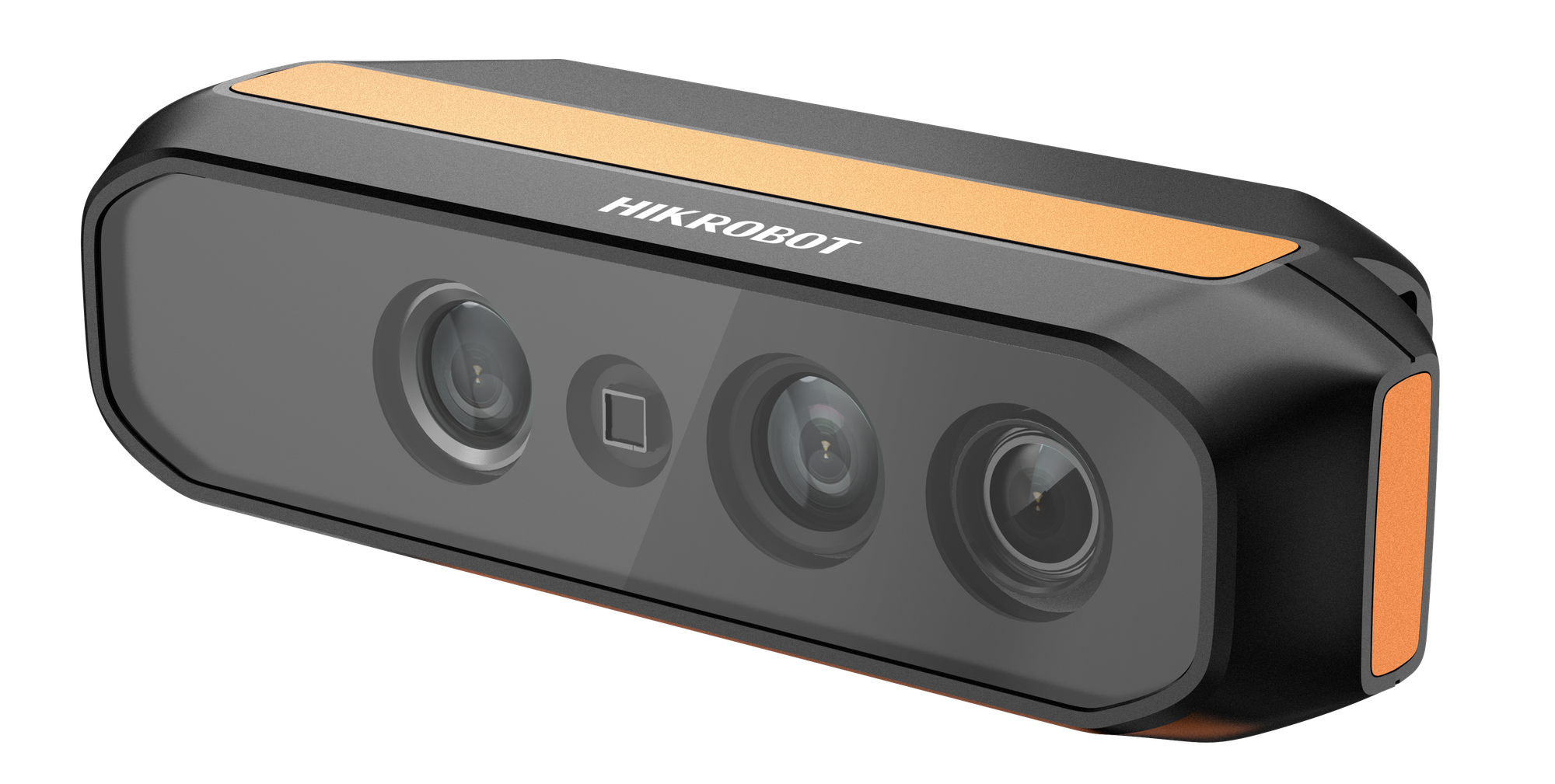

Name: HIKROBOT USB Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DB02SNU
Availability: InStock

Product introduction

Functional characteristics

Adopt active binocular technology to support high frame rate output of depth maps
Adopt short distance design, suitable for medium and short distance applications
Factory completes internal parameter calibration, provides multi-Platform SDK, convenient secondary development
Equipped with narrowband filter, has stronger anti-interference ability
Ultra-small size, reserved multilateral screw holes, can adapt to various installation needs

Ordering Model

MV-DB02SNU

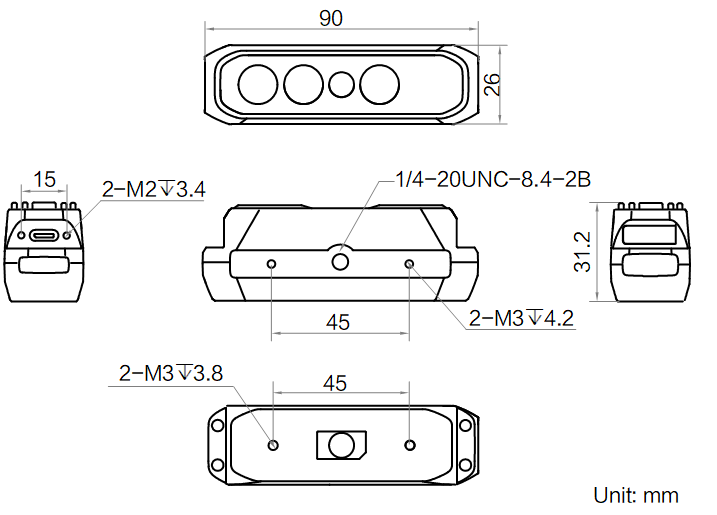

Dimensions

* The data involved in the product may be caused by environmental factors. Differences The company will not bear the consequences arising therefrom.

MV-DB02SNU

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-DB02SNU

Model

Model	MV-DB02SNU
Name	RGBD Smart Stereoscopic Camera (MV-DB02SNU)

Performance

Near Field of View	110 mm × 85 mm
Far Field of View	1200 mm × 1000 mm
Working range	100 mm ~ 1000 mm
Field of View	Depth map Field of View:60° × 50°
Depth map detection accuracy	Z: 5 mm @ 0.5 m, 10 mm @ 1 m
Resolution	Depth map:1280 × 1024@17 fps RGB chart:1536 × 1280@17 fps
Max. Frame Rate	17 fps
Data Type	Left and right IR chart, color chart, depth chart
Laser Safety Class	Class 1

Electrical

Mechanical

Dimensions	90 mm × 26 mm × 31.2 mm
Weight	Approximately 87 g
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
