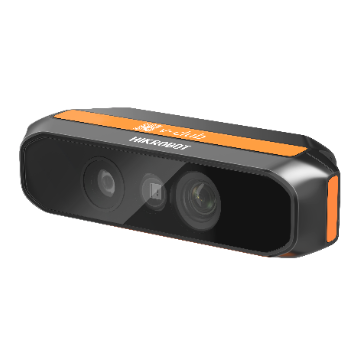

Name: HIKROBOT USB Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DB02SNU
Availability: InStock

Product introduction

Functional characteristics

Using time-of-flight technology, high depth map integrity
Support RGB and depth map synchronous high frame rate output
Factory calibration of internal parameters is completed, multi-Platform SDKs are provided, and secondary development is convenient and fast
Ultra-small, ultra-light, can adapt to various installation needs
Locking USB Type-C Interface, Power Supply output is more stable

Ordering Model

MV-DT01SNU

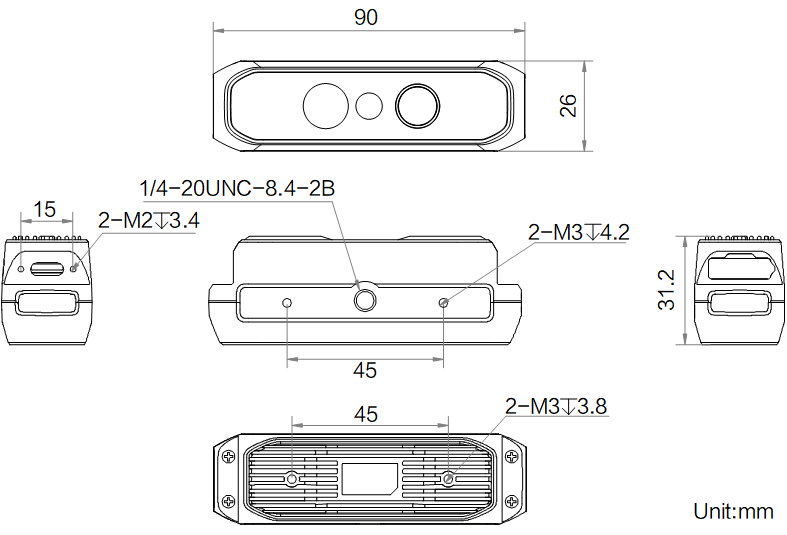

Dimensions

* Data involved in the product may occur due to environmental and other factors Differences , and the company does not bear the consequences.

MV-DT01SNU

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-DT01SNU

Model

Model	MV-DT01SNU
Name	ToFPerception Cameras(MV-DT01SNU)

Performance

Working Range	0.2 m ~ 1.5 m
Typical Field of View	500 mm × 400 mm @ 0.5 m
Field of View	Depth Map Field of View:64° × 50° RGB diagram Field of View:74° × 63°
Z-Axis Repeatability	±(10+0.5%depth1)mm
Measurement accuracy	6mm @ 1m;10mm @ 2m
Resolution	Depth diagram:640 × 480@30 fps RGB chart:1536 × 1280@30 fps
Max. Frame Rate	30 fps
Data Type	Intensity chart, color chart, depth chart
Print delay time	133 ms2

Electrical

Mechanical

Dimensions	91 mm × 26 mm × 31.2 mm
Weight	Approximately 70 g
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
