HIKROBOT CE Series Industrial Area Scan Cameras

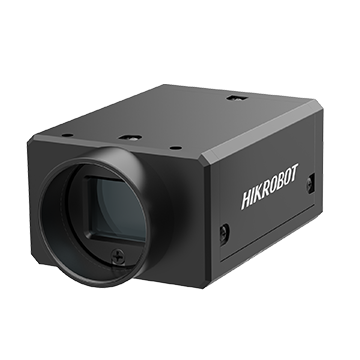

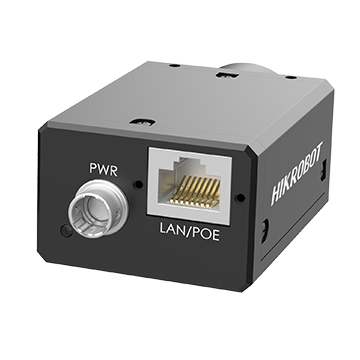

MV-CE200-10GM

5472 × 3648, GigE, Black and white

Consulting quotation
MV-CE200-10GM

Product introduction

Functional characteristics

  • Support Global Reset mode, which can be used with Light Source to obtain smear-free images in sports environments

  • Support automatic or manual adjustments such as Gain, Exposure Time, LUT, Gamma correction, etc.

  • Gigabit Network Interface, without relay, the maximum transmission distance can be up to 100m

  • Color Camera is implanted with excellent image interpolation algorithm, excellent Color restoration characteristics

  • Compatible with GigE Vision protocol V2.0 and GenlCamStandard, Seamless connection to third-party Software



Ordering Model

MV-CE200-10GM


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CE200-10GM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

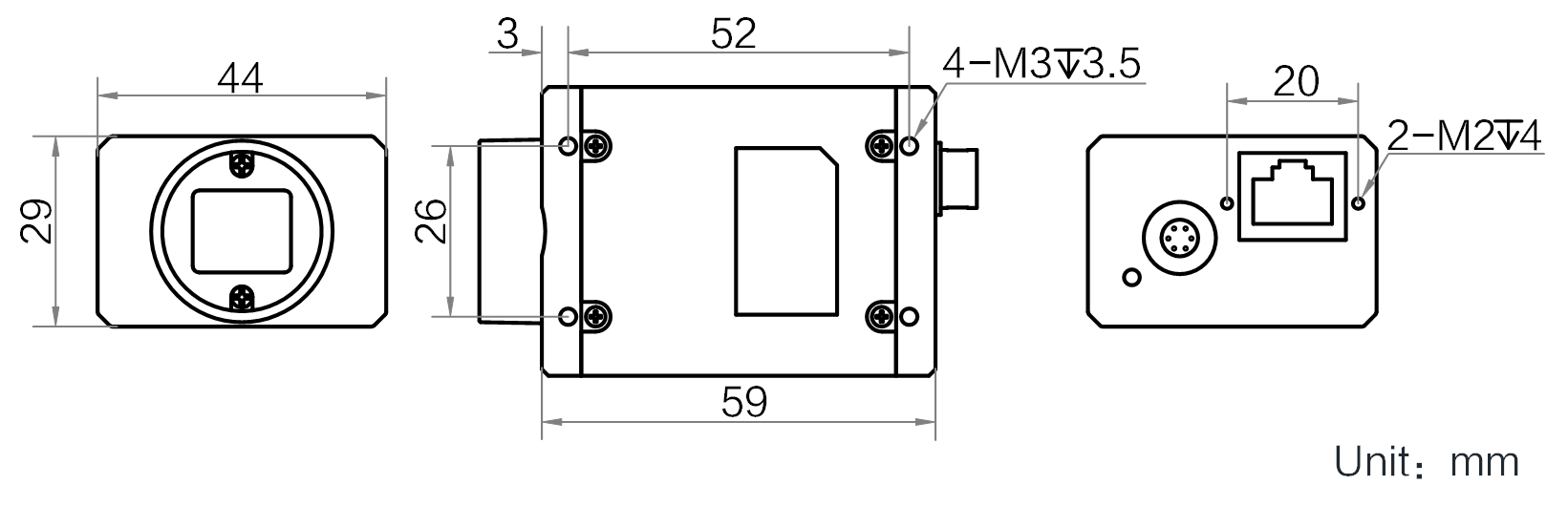

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CE200-10GM
Product Model MV-CE200-10GM
Sensor Model IMX183
Resolution 5472 × 3648
Max. Frame Rate 5.9 fps
Data Interface GigE
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
