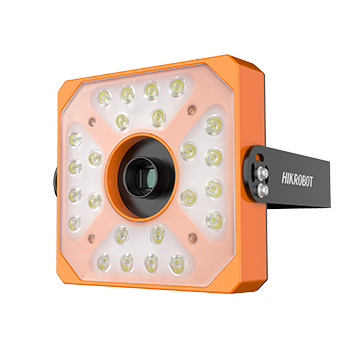

Name: HIKROBOT IDS Series Logistics Code Readers
Brand: HIKROBOT
SKU: MV-PD010003-06M-12C
Availability: InStock

Product introduction

Functional characteristics

Self-developed high-performance barcode recognition technology
realizes image and data acquisition and integration, local Storage and upload, and traceability
Integrated Mechanical design, fast installation, high luminous efficiency
Dynamically adjust the brightness of Light Source, support Software control of Light Source opening and closing
Adopt high-end materials, professional design, long life, stable Performance, and strong environmental adaptability
Seamless connection with common express Logistics management systems. Provide real-time and effective data to Logistics and production companies

Ordering Model

MV-PD010003-06M-16C

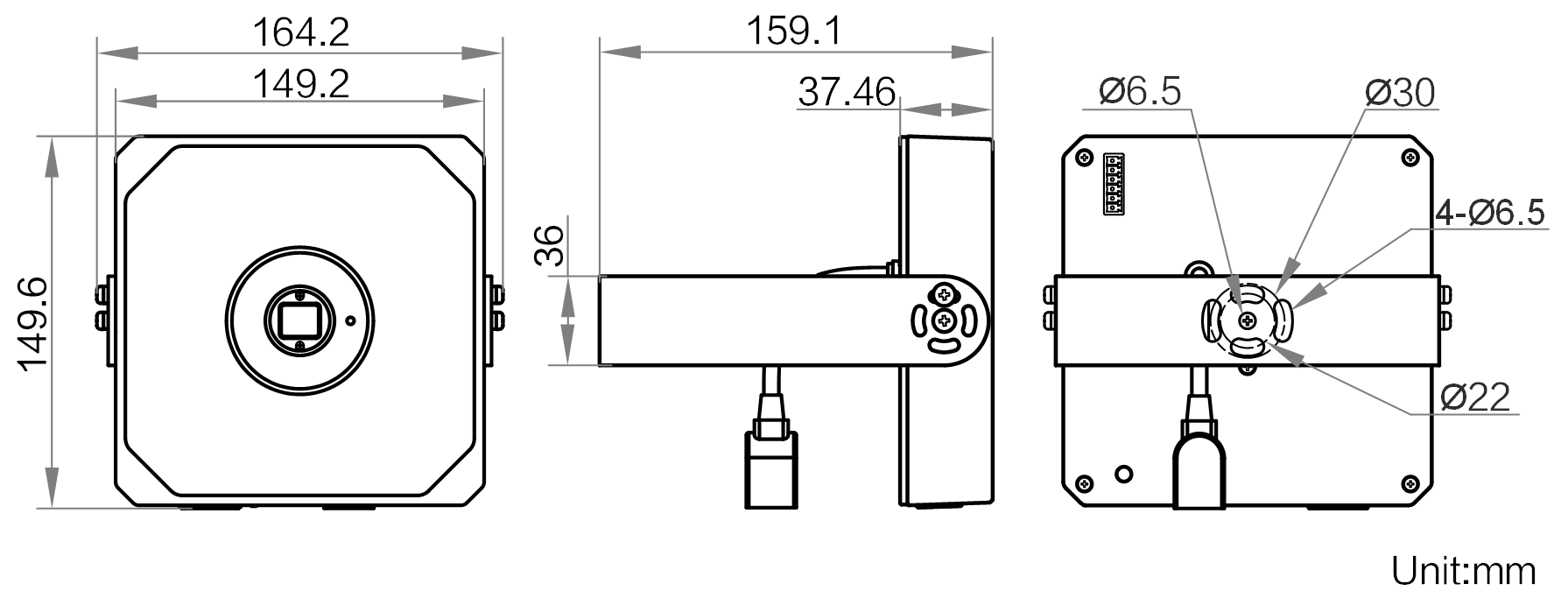

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-PD010003-06M-16C

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-PD010003-06M-16C

Model

Model	MV-PD010003-06M-16C
Name	6mp black and white code reading integrated kit

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,Codabar,EAN, etc. QR Code:QR Code,Data Matrix, etc.
Focal Length	16 mm
Optimal Working Distance	1500 mm
field of view	550 mm × 340 mm@10 mil
Depth of Field	500 mm
Resolution	3072 × 2048
Max. Frame Rate	17 fps @ 3072×2048
aperture	F2.8 ~ F16
Central Illuminance	5800 lux@1000 mm
uniformity	0.53
luminous flux	2500 lm
Light SourceWavelength	420 ~ 730 nm
Color Temperature	5700 K
Mono/Color	black and white
Pixel Format	Mono 8

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	The 6-pin terminal provides Power Supply source and I/O, including 1 optocoupler isolated input (Line0) and 1 bidirectional configurable I/O(Line2)
Power Supply	24 VDC
Max. Power Consumption	20 W

Mechanical

Dimensions (excluding Lenses)	153.4 mm ×164.4 mm ×159.1 mm
Weight (excluding Lenses)	Approximately 990 g
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20%~80%RH non-condensing
