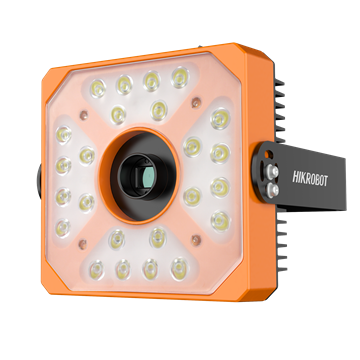

Name: HIKROBOT IDS Series Logistics Code Readers
Brand: HIKROBOT
SKU: MV-PD010003-06M-12C
Availability: InStock

Product introduction

Functional characteristics

Self-developed high-performance barcode recognition technology
realizes image and data acquisition and integration, local Storage and upload, and traceability
Integrated Mechanical design, fast installation, high luminous efficiency
Dynamically adjust the brightness of Light Source, support Software control of Light Source opening and closing
Adopt high-end materials, professional design, long life, stable Performance, and strong environmental adaptability
Seamless connection with common express Logistics management systems. Provide real-time and effective data to Logistics and production companies

Ordering Model

MV-PD010003-12C-8C

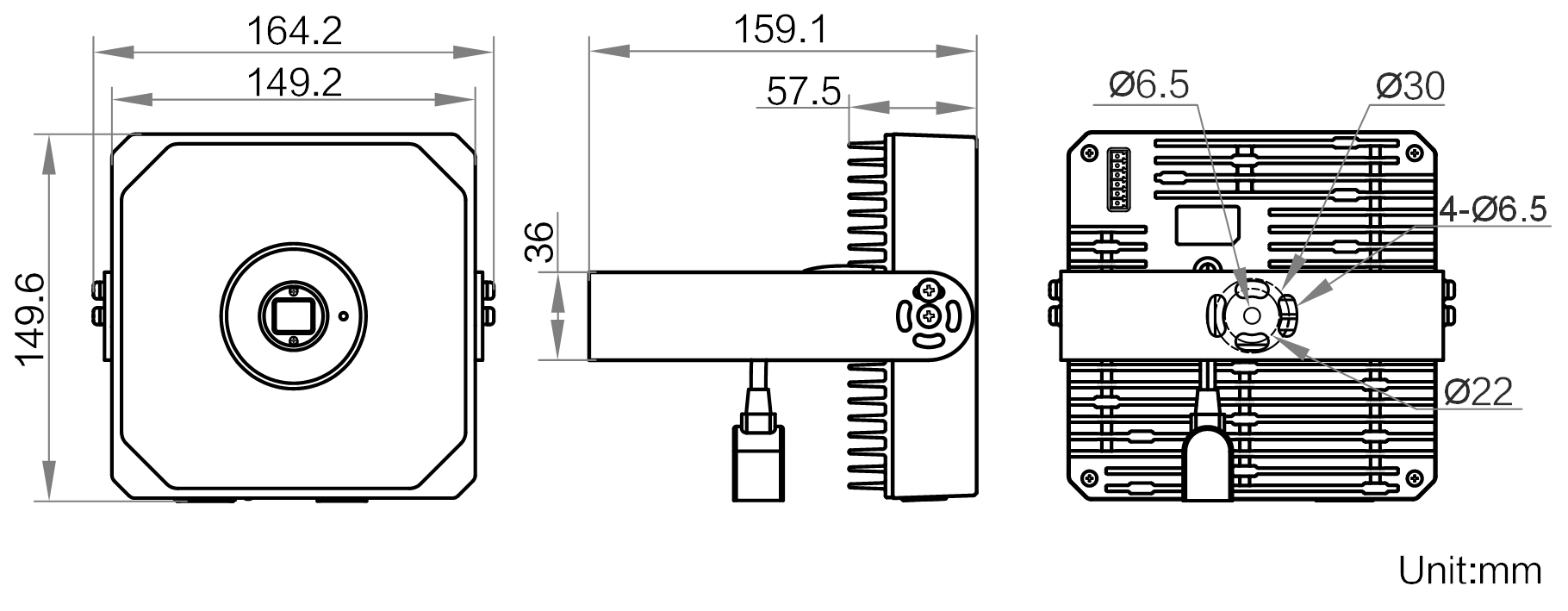

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-PD010003-12C-8C

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-PD010003-12C-8C

Model

Model	MV-PD010003-12C-8C
Name	12mp color code reading integrated kit

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,Codabar,EAN, etc. QR Code:QR Code,Data Matrix, etc.
Focal Length	8 mm
Optimal Working Distance	780 mm
field of view	730 mm × 550 mm@10 mil
Depth of Field	400 mm
Resolution	4024 × 3036
Max. Frame Rate	9.6 fps @ 4024 × 3036
aperture	F2.8 ~ F16
Central Illuminance	9000 lux @ 1000 mm
uniformity	0.56
luminous flux	5900 lm
Light SourceWavelength	420 ~ 730 nm
Color Temperature	6500 K
Mono/Color	color
Pixel Format	Mono8,Bayer8,YUV 422 Packed,YUV422(YUYV)

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	The 6-pin terminal provides Power Supply source and I/O, including 1 optocoupler isolated input (Line0) and 1 bidirectional configurable I/O(Line2)
Power Supply	24 VDC
Max. Power Consumption	44 W

Mechanical

Dimensions (excluding Lenses)	149.6 mm × 164.2 mm × 159.1 mm
Weight (excluding Lenses)	Approximately 1420 g
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80%RH non-condensing
