HIKROBOT M12 Lenses

MVL-HF0828-05S

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation

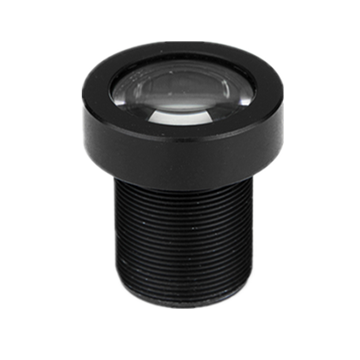

MVL-HF0828-05S

Product introduction

Functional characteristics

  • Optimal design for machine vision industry

  • High Resolution, high consistency in picture definition

  • Small Distortion, high edge brightness

  • SInterface (M12*0.5), easy system integration



Ordering Model

MVL-HF0828-05S


Dimensions

Ordering Model

MVL-HF0828-05S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

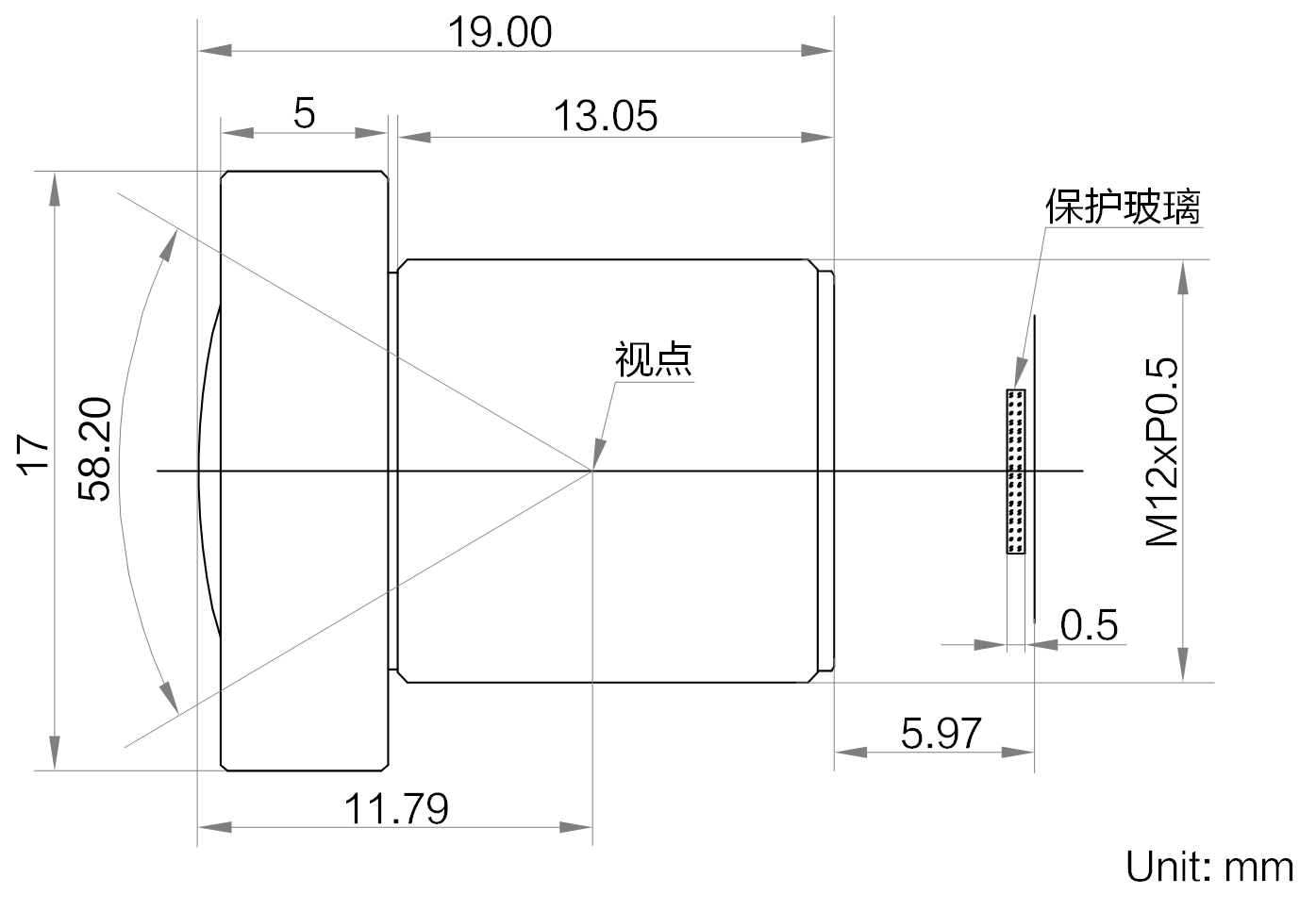

Overall size

Detailed parameters

Ordering Model MVL-HF0828-05S
Model
Model MVL-HF0828-05S
Name 8mm, F2.8, 1/1.8", 5 million Resolution, M12InterfaceLenses
Performance
Focal Length 8 mm
F-Number F2.8
Image Format Φ9 mm(1/1.8'')
TVDistortion <0.3%
Working Distance Range 120 ~ 900 mm
Field of View D(8.86 mm):58° H(7.37 mm):50° V(4.91 mm):34°
Mechanical
Interface Type S-Mount
TTL 24.9 ~ 25.5 mm
Dimensions Φ17 mm×19 mm
Temperature -10 ~ 50°C
General Specifications
Certification RoHS2.0

Data download

Product manual· SDK ·Development documentation
