HIKROBOT M12 Lenses

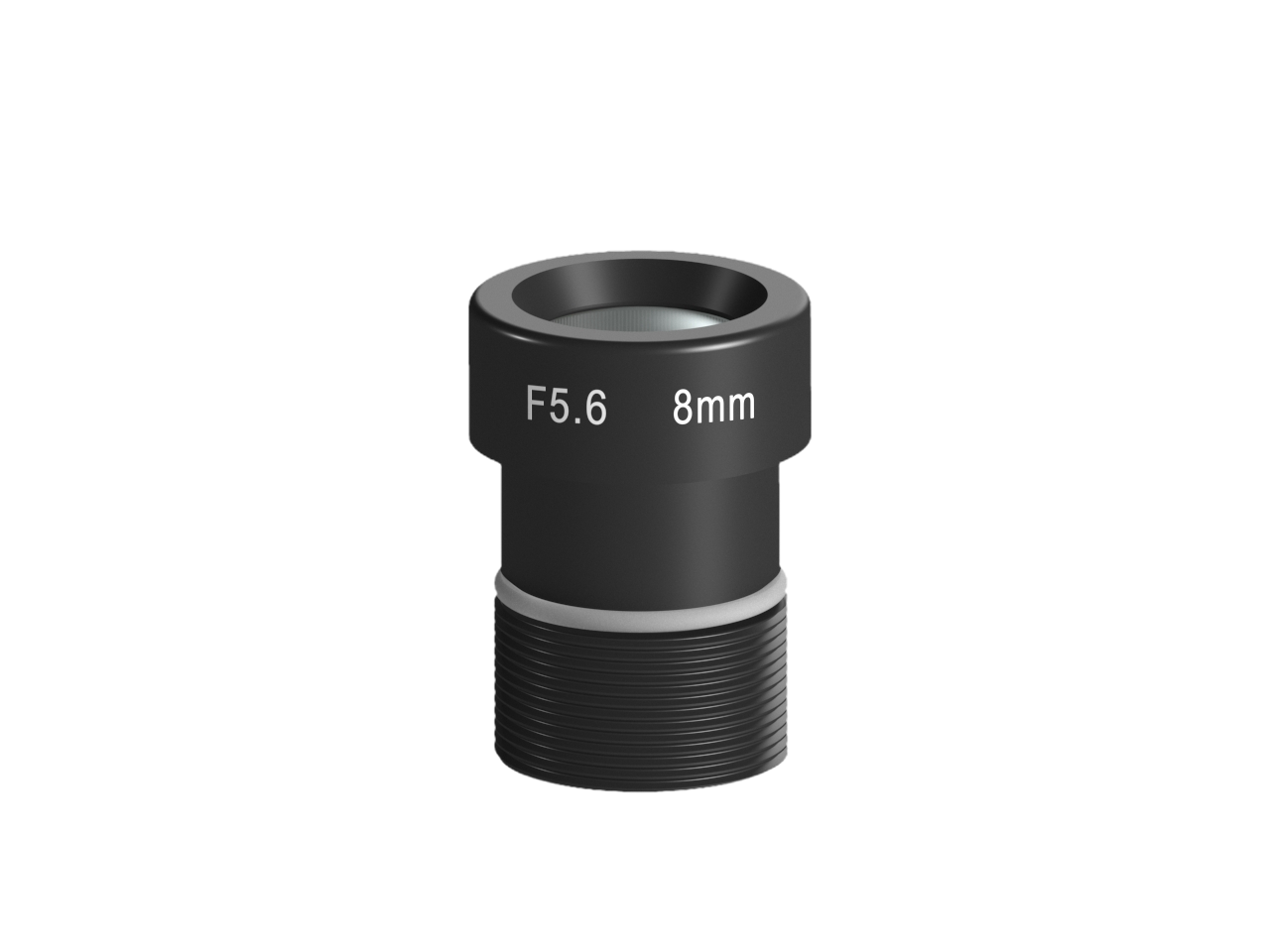

MVL-HF0856-12S

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation
MVL-HF0856-12S

Product introduction

Functional characteristics

  • Optimized design for industrial distance of machine vision

  • 12MP High Resolution, high consistency of picture definition

  • Distortion, high edge brightness

  • SInterface (M12*0.5), easy system integration



Ordering Model

MVL-HF0856-12S


Dimensions

Ordering Model

MVL-HF0856-12S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

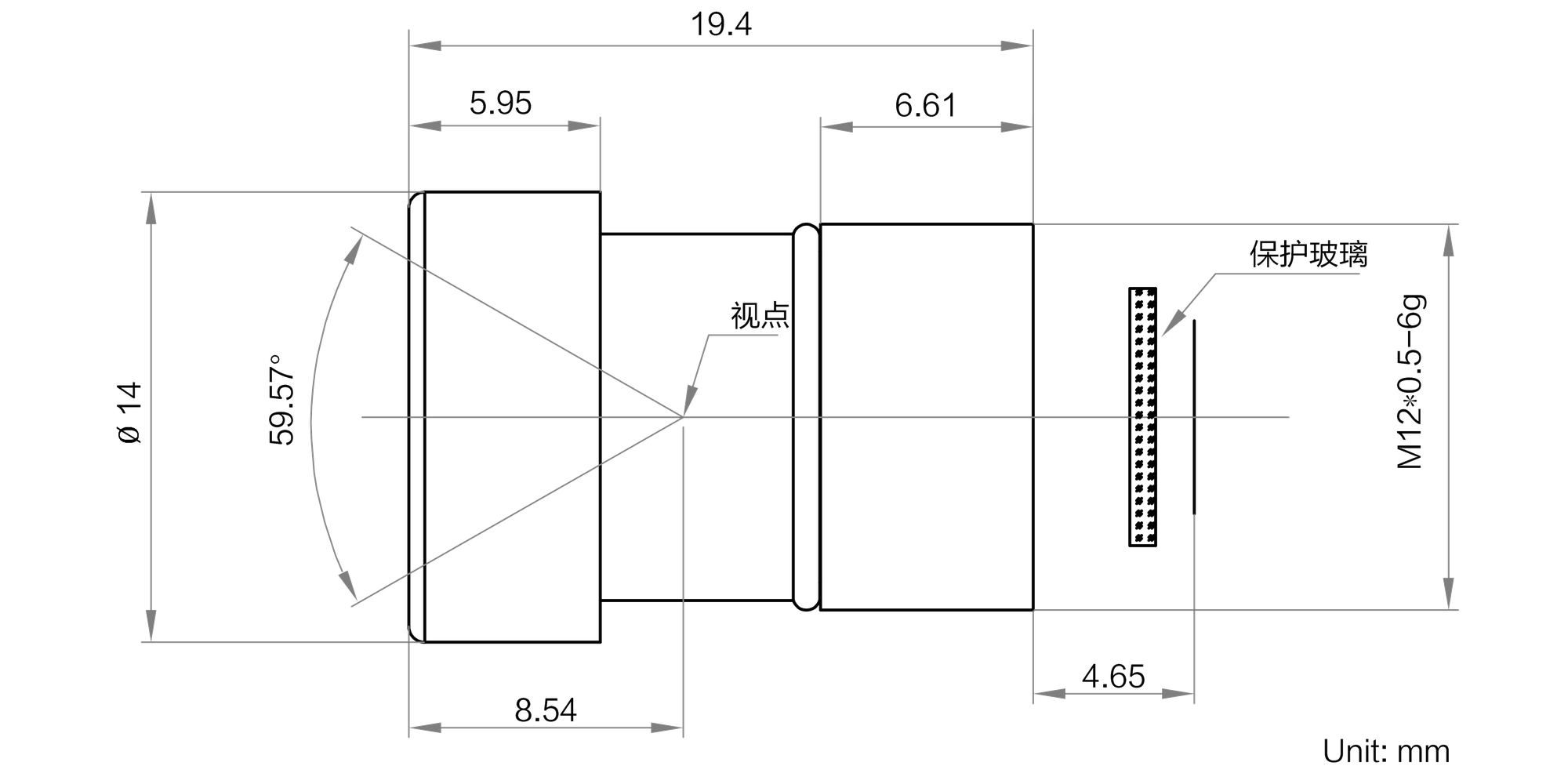

Overall size

Detailed parameters

Ordering Model MVL-HF0856-12S
Model
Model MVL-HF0856-12S
Name 8mm, F5.6, 1/1.7", 12 million Resolution, M12InterfaceLenses
Performance
Focal Length 8 mm
F-Number F5.6
Image Format Φ9.4 mm(1/1.7′′)
TVDistortion ≤ 1.51%
Working Distance Range 100 mm ~ ∞
Field of View D(8.86 mm):58° H(7.37 mm):50° V(4.91 mm):34°
Mechanical
Interface Type S-Mount
TTL 24.05 ~ 24.65 mm
Dimensions Φ14 ×19.4 mm
Temperature -10~50°C
General Specifications
Certification RoHS2.0

Data download

Product manual· SDK ·Development documentation
