HIKROBOT Style Series Lighting Controllers

MV-LE100-500W24-1ED

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Consulting quotation

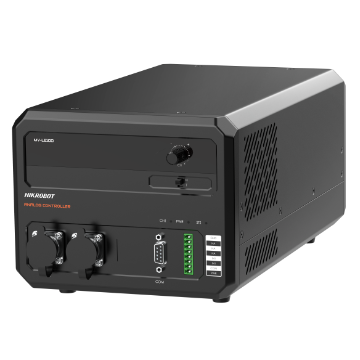

MV-LE100-500W24-1ED

Product introduction

Functional characteristics

  • Constant voltage control, support for stepless brightness adjustment

  • Panel knob adjustment, plug-and-play

  • Provides multiple optocoupler isolation inputs, flexible signal linkage

  • Industrial design, supports guide rail or screw hole installation

  • Integrate overcurrent protection, overload protection, and short circuit protection



Ordering Model

MV-LE100-500W24-1ED


Dimensions


* The data involved in the product may cause differences due to environmental and other factors. The company does not bear the consequences arising therefrom.

Ordering Model

MV-LE100-500W24-1ED

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

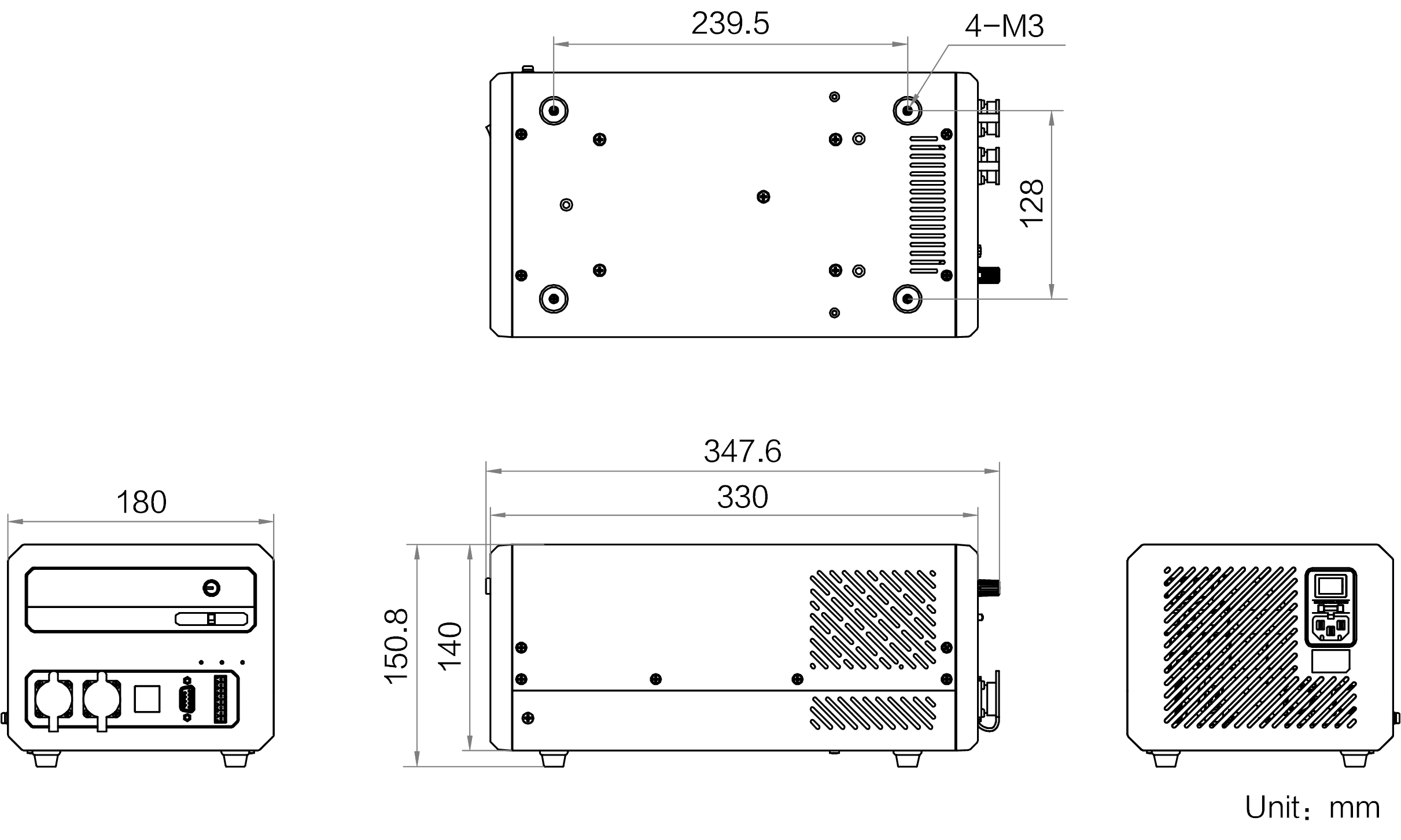

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LE100-500W24-1ED
Model
Model MV-LE100-500W24-1ED
Name Analog constant voltage Light Source controller, 500W24, 1 channel, two 19M-2 EConnectors
Performance
Driving Method Analog, constant voltage
Illumination Method Constant light, strobe
Number of Channels 1
Dimming Method Panel (knob),Software(Serial Port)
Illumination Delay Time <10 μs
Trigger Mode Support external triggering
Applicable Light Source Open Area Lights Adapt Lighting Interface:19M-2A
Electrical
Input Voltage 100 ~ 240 VAC,50/60 Hz
Input Current 5 A(115 VAC),2.5 A(230 VAC)
Output Voltage 24 VDC
Output Current 18 A max
Output Power 432 W max
Single-Channel Output Current 18 A max
External Trigger Input High level 4.5 ~ 24 VDC, low level 0 ~ 2 VDC
Mechanical
Power Interface C13 220 VACInterface
Digital I/O 1 optocoupler isolated input
Lighting Output Interface 19M-2H
Dimensions 347.6 mm × 180 mm × 150.8 mm
Housing Material Engineering molded case
Weight Approximately 4.4 kg
Temperature Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating IP30
Humidity 20% ~ 85%RH No condensation
Cooling Method Fan cooling
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
