HIKROBOT Style Series Lighting Controllers

MV-LE200-60W24-4TD

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Consulting quotation

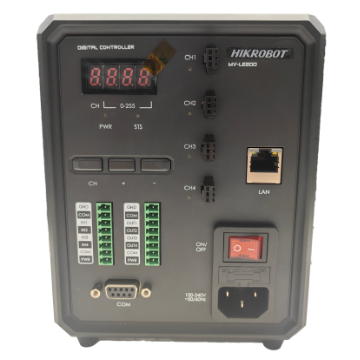

MV-LE200-60W24-4TD

Product introduction

Functional characteristics

  • Flexible brightness control method, Light Source brightness can be controlled through panel buttons or Software

  • Supports Serial Port or network port mode for device management and parameter configuration

  • Provides multiple input and output, flexible signal linkage

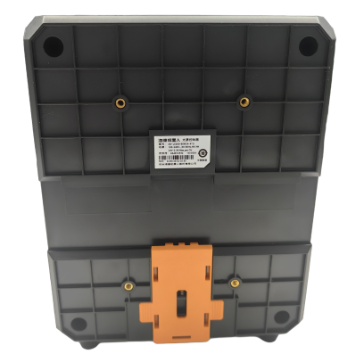

  • Industrial design, supports rail or screw hole mounting

  • Integrate overcurrent protection, overload protection, and short circuit protection functions



Ordering Model

MV-LE200-60W24-4TD


Dimensions


* The data involved in the product may cause Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-LE200-60W24-4TD

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

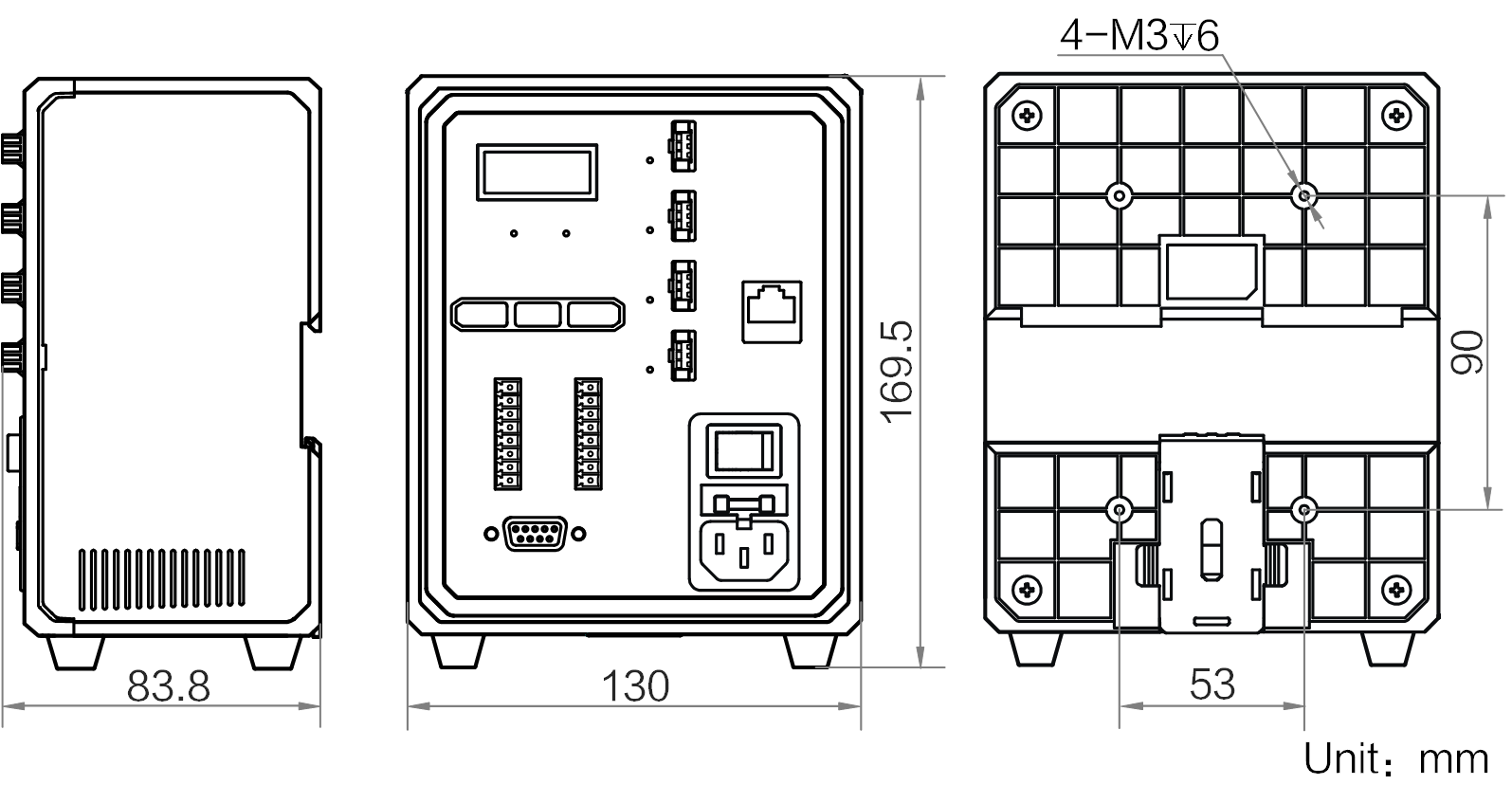

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LE200-60W24-4TD
Model
Model MV-LE200-60W24-4TD
Name Digital constant voltage Light Source controller 60w, 4 channels
Performance
Driving Method Digital, constant voltage
Illumination Method Constant light, strobe
PWM frequency 125 KHz
Highlight strobe Not supported
Number of Channels 4
Dimming Method Panel (buttons),Software (Serial Port or network port)
Dimming Levels 0 ~ 255
Illumination Delay Time 25 ~ 35 μs
Trigger Mode Support external triggering,
Communication Protocol Serial,UDP
Applicable Light Source Ring Light Source, Strip Light Source,Area Lights,Coaxial Lights, etc.
Electrical
Input Voltage 100 ~ 240 VAC,50/60 Hz
Input Current 1.8 A (115VAC),1 A (230VAC)
Output Voltage 24 VDC
Output Current 2.5 A max
Output Power 60 W max
Single-Channel Output Current 2.5 A max
External Trigger Input High level 4.5 ~ 24 V, low level 0 ~ 2 V
External Trigger Output High level 10 ~ 24 V, low level 0 ~ 2 V
Mechanical
Power Interface C13 220 VACInterface
Control Interface RJ45 network port, DB9 FSerial Port
Digital I/O 4 optocoupler isolated inputs, 4 optocoupler isolated outputs
Lighting Output Interface SMR-03V-BC
Dimensions 130 mm × 83.8 mm × 169.5 mm
Housing Material Engineering molded housing
Weight Approximately 733 g
Temperature Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity 20% ~ 85%RH No condensation
IP Rating IP30
Cooling Method Fan cooling
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
