HIKROBOT Style Series Lighting Controllers

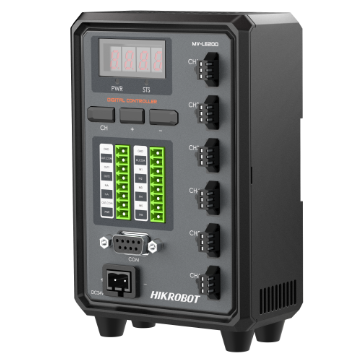

MV-LE200-90W24-6D

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Consulting quotation
MV-LE200-90W24-6D

Product introduction

Functional characteristics

  • Flexible brightness control method, Light Source brightness can be controlled through panel buttons or Software

  • Supports Serial Port or network port mode for device management and parameter configuration

  • Provides multiple input and output, flexible signal linkage

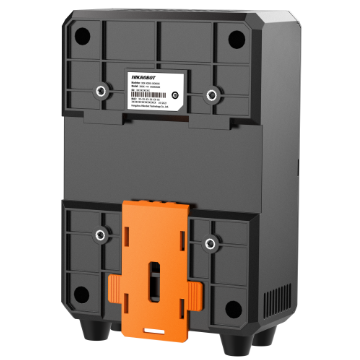

  • Industrial design, supports rail or screw hole mounting

  • Integrate overcurrent protection, overload protection, and short circuit protection functions



Ordering Model

MV-LE200-90W24-6D


Dimensions


* The data involved in the product may cause Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-LE200-90W24-6D

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

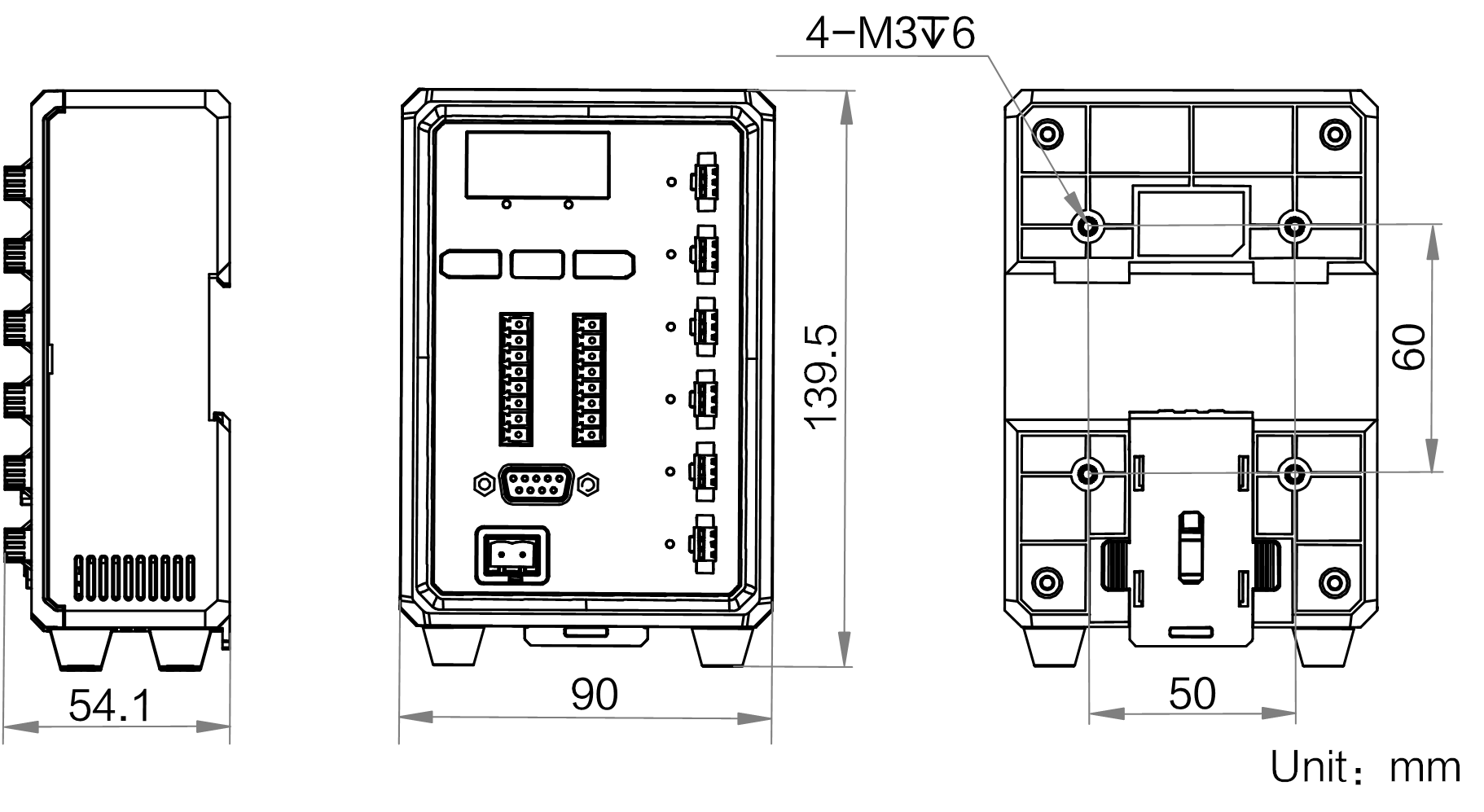

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LE200-90W24-6D
Model
Model MV-LE200-90W24-6D
Name Digital constant voltage Light Source control 90W24, 6 channels
Performance
Driving Method Digital, constant voltage
Illumination Method Constant light, strobe
PWM frequency 125 KHz
Highlight strobe Not supported
Number of Channels 6
Dimming Method Panel (buttons),Software (Serial Port)
Dimming Levels 0 ~ 255
Illumination Delay Time <10 μs
Trigger Mode Support external triggering,
Communication Protocol Serial
Applicable Light Source Ring Light Source, Strip Light Source,Area Lights,Coaxial Lights, etc.
Electrical
Input Voltage 24 VDC
Input Current 4.7 A
Output Voltage 24 VDC
Output Current 3.75 A max
Output Power 90 W max
Single-Channel Output Current 3 A max
External Trigger Input High level 4.5 ~ 24 V, low level 0 ~ 2 V
External Trigger Output High level 10 ~ 24 V, Low level 0 ~ 2 V
Mechanical
Power Interface 5.08 mm × 2 docking terminal
Control Interface DB9FSerial Port
Digital I/O 6 optocoupler isolated inputs, 2 optocoupler isolated outputs
Lighting Output Interface SMR-03V-BC
Dimensions 90 mm × 54.1 mm × 139.5 mm
Housing Material Engineering molded case
Weight About 205 g
Temperature Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity 20% ~ 85%RH No condensation
IP Rating IP30
Cooling Method Natural cooling
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
