Name: HIKROBOT Style Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LE100-24W24-2
Availability: InStock

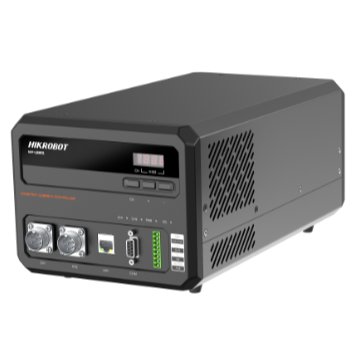

MV-LE201-750W48-2TD

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Product introduction

Functional characteristics

Constant current drive improves light emission consistency, and the total Power output covers a variety of 200W to 750W Model
buttons + digital displays, which can realize quick query and optical circuit output settings
Supports Serial Port or network port mode for device management and parameter configuration
Supports external trigger Interface, and can flexibly choose always on or strobe working mode
integrates overcurrent protection, overload protection, over-temperature protection, Integrated short circuit protection

Ordering Model

MV-LE201-750W48-2TD

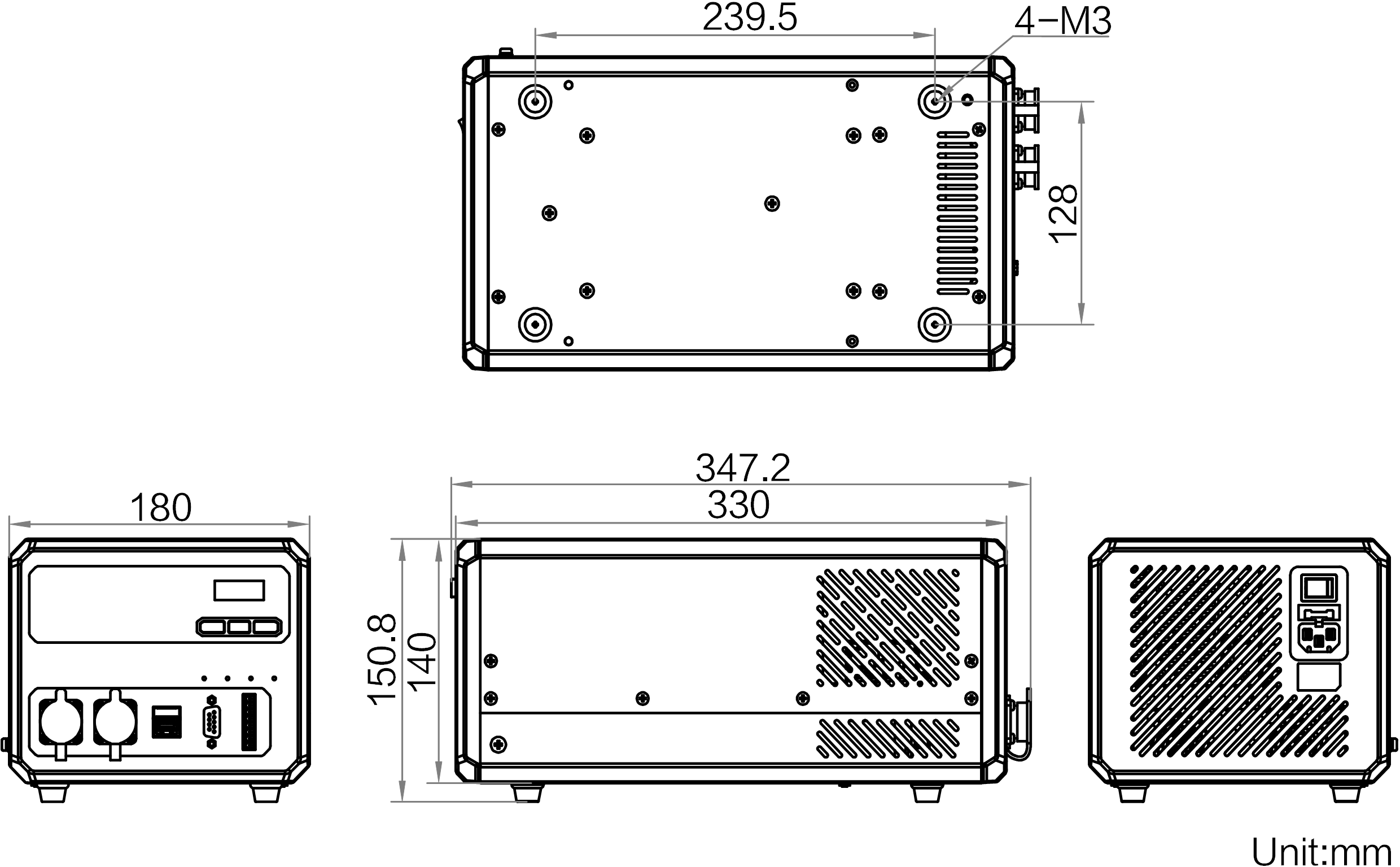

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-LE201-750W48-2TD

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LE201-750W48-2TD

Model

Model	MV-LE201-750W48-2TD
Name	Digital constant current Light Source controller 750W48, 2 channels

Performance

Driving Method	Digital, constant voltage
Illumination Method	Constant light, strobe
Number of Channels	2
Dimming Method	Panel (buttons),Software (Serial Port or network port)
Dimming Levels	0 ~ 255
Illumination Delay Time	< 10 μs
Trigger Mode	External triggering is supported, internal triggering
Communication Protocol	UDP,Serial
Applicable Light Source	Line Lights (19M-8H and 19M-8AInterface)

Electrical

Input Voltage	100 ~ 240 VAC, 50/60 Hz
Input Current	8.2 A/115 VAC 3.9 A/230 VAC
Output Voltage	48 VDC
Output Current	15 A max
Output Power	750 W max
Single-Channel Output Current	8 A max
External Trigger Input	High level 4.5 ~ 24V, low level 0 ~ 2V
External Trigger Output	High level 10 ~ 24V, low level 0 ~ 2V

Mechanical

Power Interface	C13 220 VAC Interface
Control Interface	RJ45 network port, DB9F Serial Port
Digital I/O	2 optocoupler isolated inputs, 2 optocoupler isolated outputs
Lighting Output Interface	19M-8H(hole type), 2
Dimensions	347.2 mm × 180 mm × 150.8 mm
Housing Material	Engineered molded case +SECC
Weight	5300 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 85%RH No condensation
IP Rating	IP30
Cooling Method	Fan cooling
