Name: HIKROBOT Style Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LE100-24W24-2
Availability: InStock

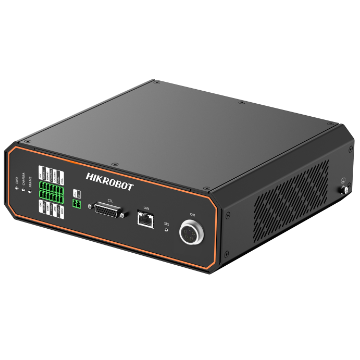

MV-LE202-300W24-1T

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Product introduction

Functional characteristics

Constant voltage drives Light Source to ensure the stability of Light Source control
Supports network interface mode for device management and parameter configuration
Supports external trigger input and output interfaces to synchronously control Light Source and Camera
High frequency response, cooperates with linear array Camera to achieve high-speed Light Source pattern switching
Equipped with dedicated client and management Software, rich and easy-to-use

Ordering § Model 10§* Data involved in the product may be caused by environmental factors

MV-LE202-300W24-1T

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-LE202-300W24-1T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

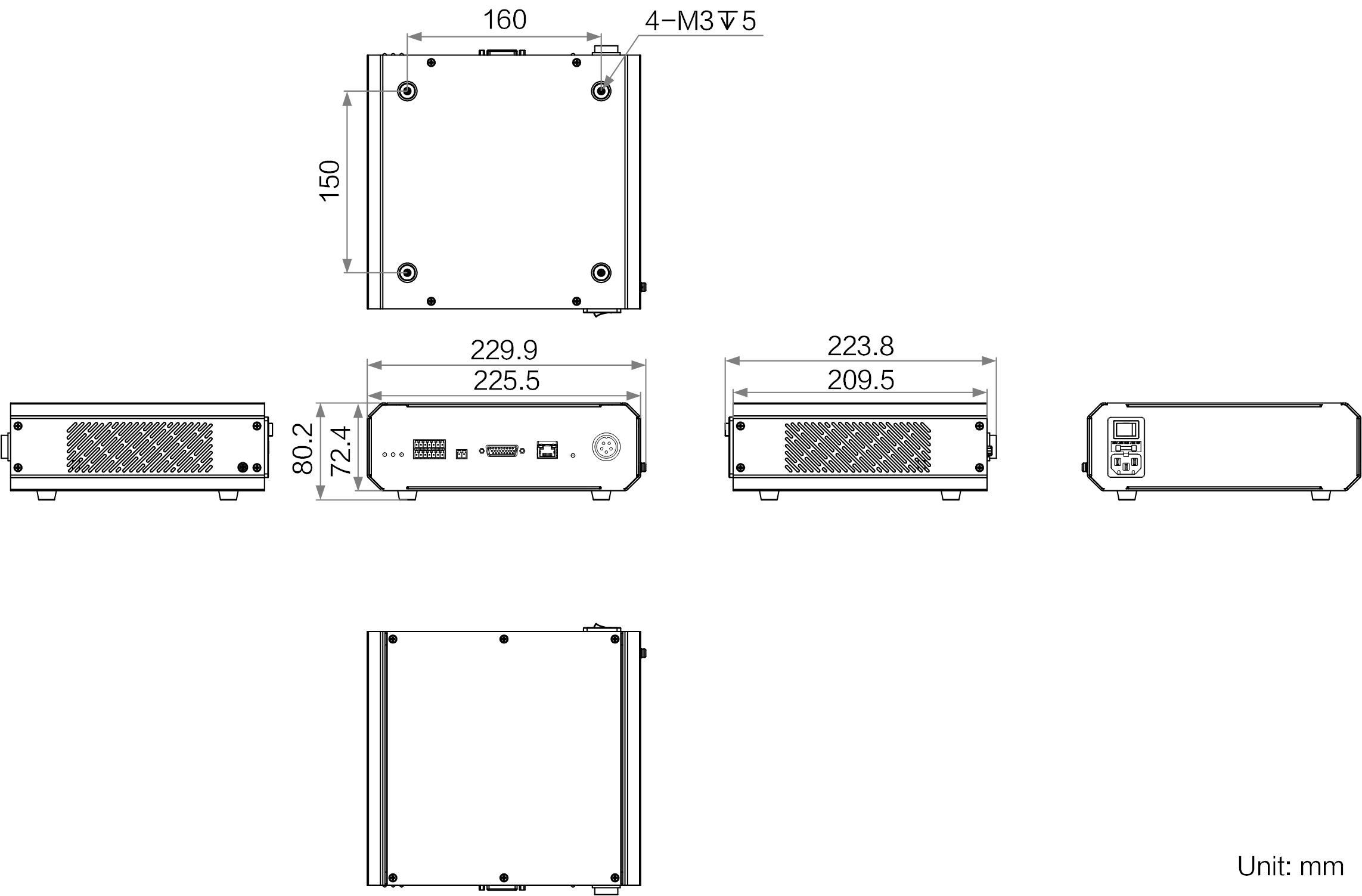

Dimensions

Detailed parameters

Ordering Model MV-LE202-300W24-1T

Model

Model	MV-LE202-300W24-1T
Name	LE202 programmable series, constant voltage output/voltage 24VDC, 1 channel, with network port

Performance

Driving Method	Digital, constant voltage
Illumination Method	Strobe
Number of Channels	1 channel
Dimming Method	Software(network port), brightness adjustable
Trigger Mode	Support external trigger, internal trigger, soft trigger
Trigger response delay	650 ns
Max. Line Rate	200 kHz
Communication Protocol	UDP
Applicable Light Source	2.5D line-scan programmable stripe Light Source

Electrical

Input Voltage	100 ~ 240 VAC,50/60 Hz
Input Current	3.4 A (115 VAC),1.7 A (230 VAC)
Output Voltage	24 VDC
Output Current	12.5 A max
Output Power	300 W max
Single-Channel Output Current	12.5 A max
External Trigger Input	High level 4.5 ~ 24 VDC, Low-level 0 ~ 2 VDC
External Trigger Output	RS485Standard output

Mechanical

Power Interface	C13 220 VACInterface
Control Interface	RJ45 network port
Digital I/O	3 inputs and outputs, support single-ended/differential
Lighting Output Interface	18MF-5B (bore type)
Dimensions	225.5 mm × 224 mm × 80.2 mm
Housing Material	Aluminum gold housing
Weight	2.35 kg
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 85%RH Non-condensing
IP Rating	IP30
Cooling Method	Fan cooling
