Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

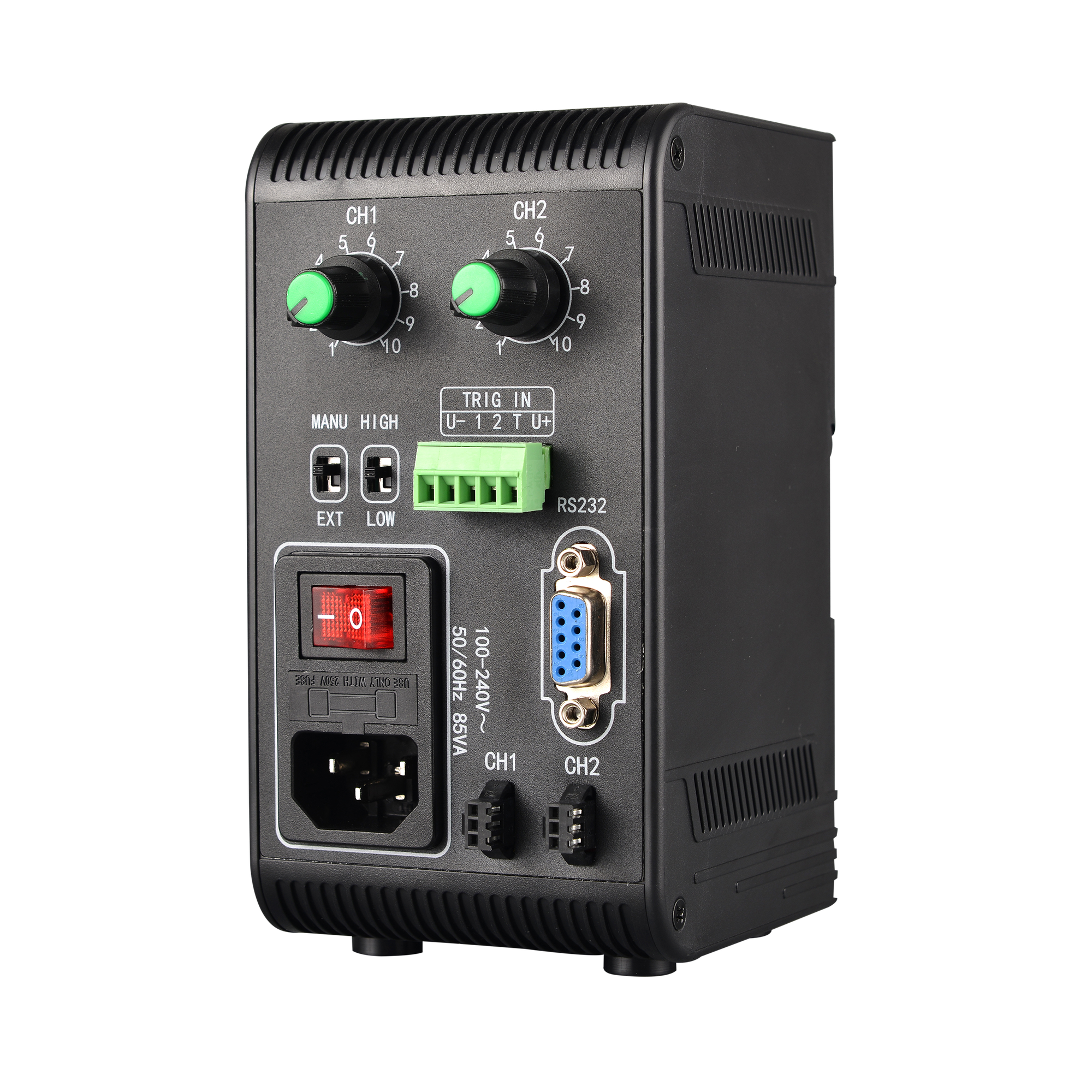

MV-LEVD-150-1B-PY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Single-Channel Output Current up to 6.25 A
Supports panel knobs, panel buttons, and Serial Port communication to control brightness
Serial Port provides 0 to 255 levels of brightness adjustment, a total of 256 levels of brightness adjustment
External trigger adopts high-speed optocoupler isolation design to provide accurate and highly reliable trigger signals
Features of power failure preservation, Overload/short circuit protection function

Ordering Model

MV-LEVD-150-1B-PY

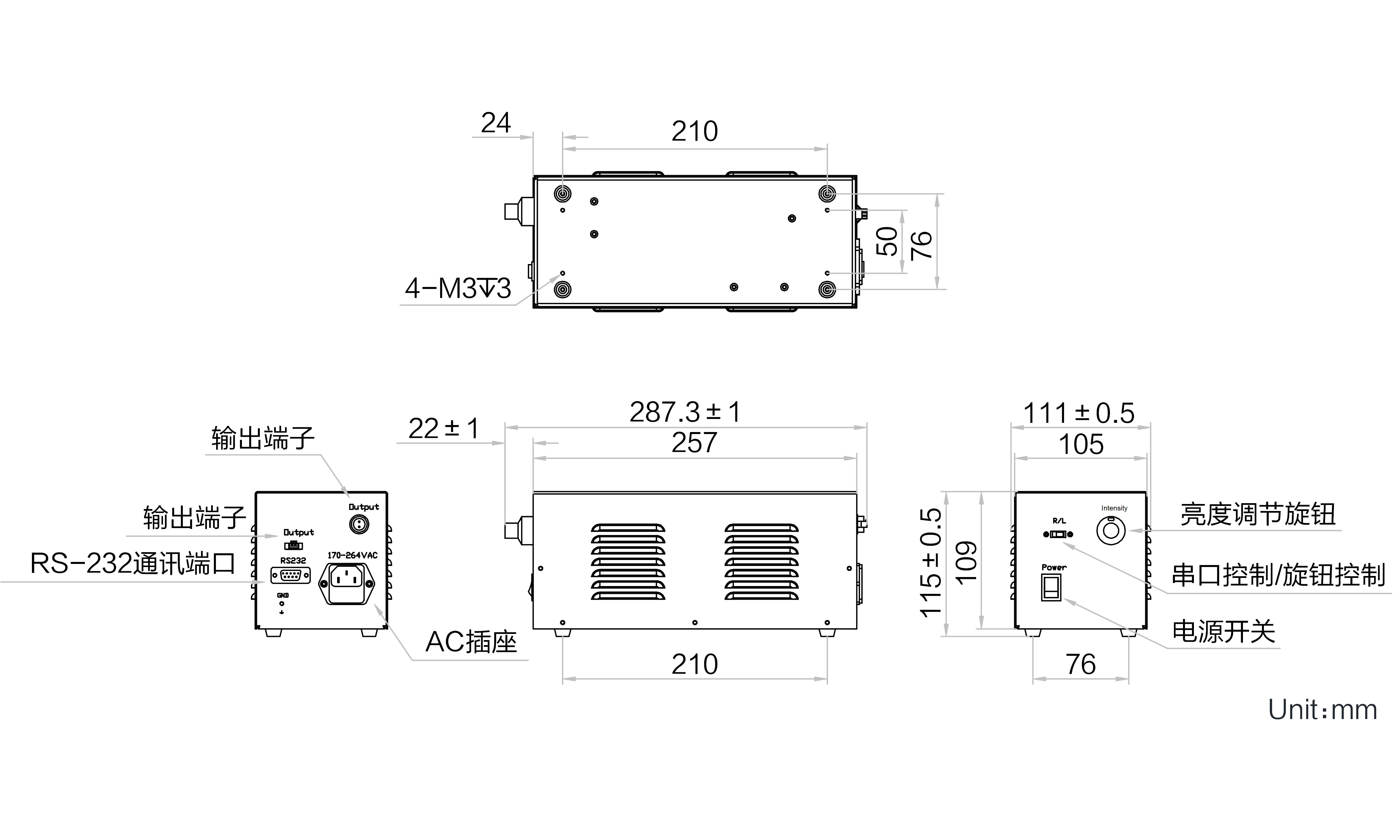

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-LEVD-150-1B-PY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LEVD-150-1B-PY

Model

Model	MV-LEVD-150-1B-PY
Name	Digital constant voltage Light Source controller, 150W, 1 channel@12M-2BInterface

Performance

Driving Method	Constant voltage
Illumination Method	Constant voltage
PWM frequency	Not supported
Highlight strobing	Not supported
Number of Channels	1
Dimming Method	Panel knob,Serial Port communication
Dimming Levels	0 ~ 255
Illumination Delay Time	Not supported
Trigger Mode	Not supported
Communication Protocol	Not supported
Applicable Light Source	Large Area Lights, StandardLine Lights

Electrical

Input Voltage	170 ~ 240 VAC,50/60 Hz
Input Current	1 A
Output Voltage	24 VDC
Output Current	6.25 A max
Output Power	150 W max
Single-Channel Output Current	6.25 A max
External Trigger Input	Not supported
External Trigger Output	Not supported

Mechanical

Power Interface	AC sockets
Control Interface	Serial Port
Digital I/O	Not supported
Lighting Output Interface	12M-2B SMR-03V-BC
Dimensions	309.3 mm × 115 mm × 111 mm
Housing Material	Galvanized sheet
Weight	Approximately 2160 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating	IP30(when installed correctly)
Humidity	20% ~ 85%RH No condensation
Cooling Method	Forced cooling (built-in fan)
