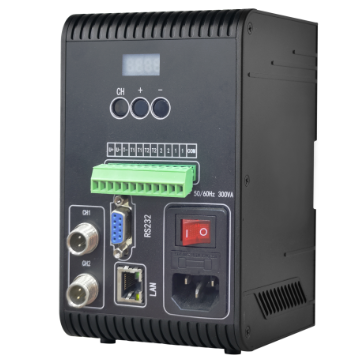

Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

MV-LEVD-200-2-PY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Light Source lighting pulse width range from 0 to 999 μs
Increase the brightness of the Light Source to more than 400% instantly and extend the service life of the Light Source
Contains a Camera trigger port for good picture synchronization
Supports 2 debugging modes: external trigger and internal Trigger Mode
Has 2 protection mechanisms: output overload and short circuit

Ordering § Model 10§* The data involved in the product may occur due to environmental factors

MV-LEVD-200-2-PY

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-LEVD-200-2-PY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LEVD-200-2-PY

Model

Model	MV-LEVD-200-2-PY
Name	Digital constant voltage Light Source controller, strobe brightening, 200W, 2 channels, 12M-2BInterface, strobe brightening, with network port

Performance

Driving Method	Constant voltage
Illumination Method	Pulsed
PWM frequency	Not supported
Brightening Strobing	Support
Number of Channels	2
Dimming Method	Pulse width adjustment
Dimming Levels	0 ~ 999
Illumination Delay Time	≤ 5 μs
Trigger Mode	Support external triggering, internal triggering
Communication Protocol	RS-232, network port
Applicable Light Source	Ring Light Source, Light Source,Area Lights,Coaxial Lights

Electrical

Input Voltage	100 ~ 240 VAC,50/60 Hz
Input Current	2.4 A
Output Voltage	48 VDC
Output Current	100 A max
Output Power	200 W max
Single-Channel Output Current	50 A max(instantaneous value)
External Trigger Input	rising edge signal 12 ~ 24 VDC
External Trigger Output	12 VDC voltage signal output synchronously with the Light Source

Mechanical

Power Interface	AC socket
Control Interface	Serial Port
Digital I/O	4 inputs, 4 Camera trigger outputs (Trigger Camera only supports rising edge triggering), 1 internal power output
Lighting Output Interface	12M-2B
Dimensions	169 mm × 100 mm × 111.8 mm
Housing Material	Engineering molded case
Weight	About 810 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating	IP30(correctly installed)
Humidity	20% ~ 85%RH No condensation
Cooling Method	Forced cooling (built-in fan)
