HIKROBOT Full Range of Industrial PCs

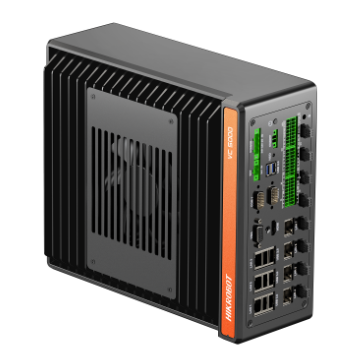

MV-VC5515-256G70-2T

The products cover various forms such as rack-mounted, wall-mounted, embedded, and flat-panel all-in-one machines, covering Intel® Core™ 6th-13th CPUs, meeting 1 to 7 different PCIE/PCI expansion requirements and meeting various application needs in the vision industry.

Consulting quotation
MV-VC5515-256G70-2T

Product introduction

Functional characteristics

  • Equipped with desktop-level Intel 12th generation CPU, providing powerful computing Performance

  • Supports 32 GPIO input and output functions, and some outputs support NPN/PNP switching

  • Adopt gigabit network port to support high-speed and stable image transmission

  • Supports multi-channel Light Source control and high-speed synchronous control



Ordering Model

MV-VC5515-256G70-2T


Dimensions


* Data related to the product may be generated due to environmental factors and other factors Differences , the company will not bear the consequences arising therefrom.

Ordering Model

MV-VC5515-256G70-2T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-VC5515-256G70-2T
Model
Model MV-VC5515-256G70-2T
Name VC5000 Vision Controller, 12th-I5, 32GB +256G SSD+2T HDD, POE support, no PCIE extension
Performance
Processor Intel® CoreTM i5-12400
Memory 16 GB×2
Storage 256G SSD and 2T HDD
GPU Intel® UHD Graphics 730
Operating System Windows 10, not activated
Chipset H610
Interface
Video Output 1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support 1920 × 1080@60Hz
Digital I/O Supports 8 optocoupler isolated inputs Support 12 optocoupler isolated outputs (support NPN/PNP switching), 8 digitally isolated low-side driver outputs Supports 4 channels of non-isolated bidirectional configurable differential IO
Network Interface 7 Gigabit ports, 4 of which support PoEPower Supply
USB Interface 4 USB 2.0 Interfaces 4 USB 3.0 Interfaces 1 built-in USB2.0 Interface
Serial Port Default 2-way RS-232, can be configured as RS-485 or RS-422
Lighting Interface 8-channel 24V constant voltage Light Source drive, single channel Max. Power Consumption72W,8-way Max. Power Consumption190W
Expansion Interface 2 SATA3.0 Interfaces
Electrical
Power Supply 24 V (4-pinInterface System Power Supply)
Typical Power Consumption 264 W(4-pinInterface System Power Supply)
Mechanical
Dimensions 302.3 mm × 248 mm × 105.2 mm
Weight About 6 kg
Temperature 0 ~ 45 °C
Humidity 20% ~ 95% RH Non-condensing
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
