Name: HIKROBOT CH Series Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CH040-A0CM
Availability: InStock

Product introduction

Functional characteristics

Supports automatic or manual adjustment of Gain, Exposure Time, Gamma correction, LUT, etc.
Supports custom ROI, supports horizontal Mirror and vertical Mirror
Supports hard trigger, soft trigger and free running mode, supports triggering Camera through Camera LinkFrame Grabbers
Supports four Configuration Modes: Base, Medium, Full, and 80-bit
Compatible with Camera Link protocol and GenICamStandard, Can be seamlessly connected with third-party SoftwarePlatforms

Ordering Model

MV-CH050-10CM

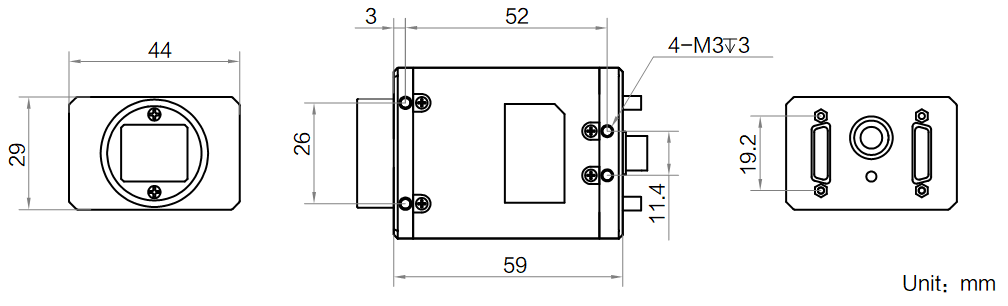

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CH050-10CM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

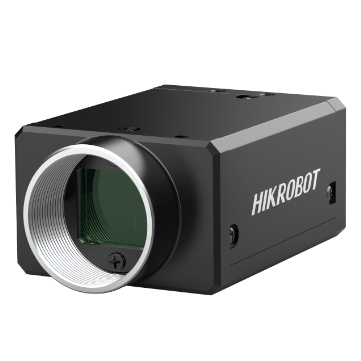

Ordering Model MV-CH050-10CM

Model

Model	MV-CH050-10CM
Name	5 MP Camera Link Area Array Camera, IMX250, Black and White

Performance

Sensor Type	CMOS, global shutter
Sensor Model	Sony IMX250
Pixel Size	3.45 μm×3.45 μm
Optical Format	2/3"
Resolution	2432 × 2048
Max. Frame Rate	140 fps @2432 × 2048 Mono 8
Configuration Mode	Base,Medium,Full,80-bit
Channel Mode	1X2_1Y,1X4_1Y,1X8_1Y,1X10_1Y
Number of Channels	2/4/8/10 Taps
Pixel Clock	60 MHz,70 MHz,85 MHz
Dynamic Range	75.4 dB
SNR	40 dB
Gain	0 dB ~ 20 dB
Exposure Time	15 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure modes
Mono/Color	Black and White
Pixel Format	Mono 8/10/12
Binning	Support 1×1,1× 2, 1 × 4, 2 × 2, 2 × 4, 4 ×1,4× 2, 4 ×4
Downsampling	Not supported
Mirror	Support horizontal Mirror, vertical Mirror

Electrical

Data Interface	Camera Link(SDR port)
Digital I/O	6-pin P7Connector provides Power Supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO(Line2); Camera Link Interface provides IO (CC1/CC2/CC3/CC4)
Power Supply	9~24 VDC
Typical Power Consumption	3.3 W@12 VDC

Mechanical

Lens Mount	C-Mount
Dimensions	44 mm × 29 mm × 59 mm
Weight	Approximately 100g
IP Rating	IP30 (Under correct installation of Cables and Lenses)
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20%~80%RH No condensation

General Specifications

Software	MVSSoftware, Frame Grabbers Control Software compliant with the GenlCam protocol
Operating System	Windows XP/7/10/11(32/64bits)
Protocol / Standard	Camera Link V2.0,GenICam
Certification	CE,RoHS,KC
