Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Support for RGB true color output, image lossless compression
Rich ISP functions, such as Gamma correction, flat-field correction, LUT, black level adjustment, etc.
Bi-directional I/O wiring design, input/output Flexible configuration
Compact, multi-sided mounting holes
Compatible with GigE Vision V2.0 protocol and GenICamStandard

Ordering Model

MV-CL024-91GC

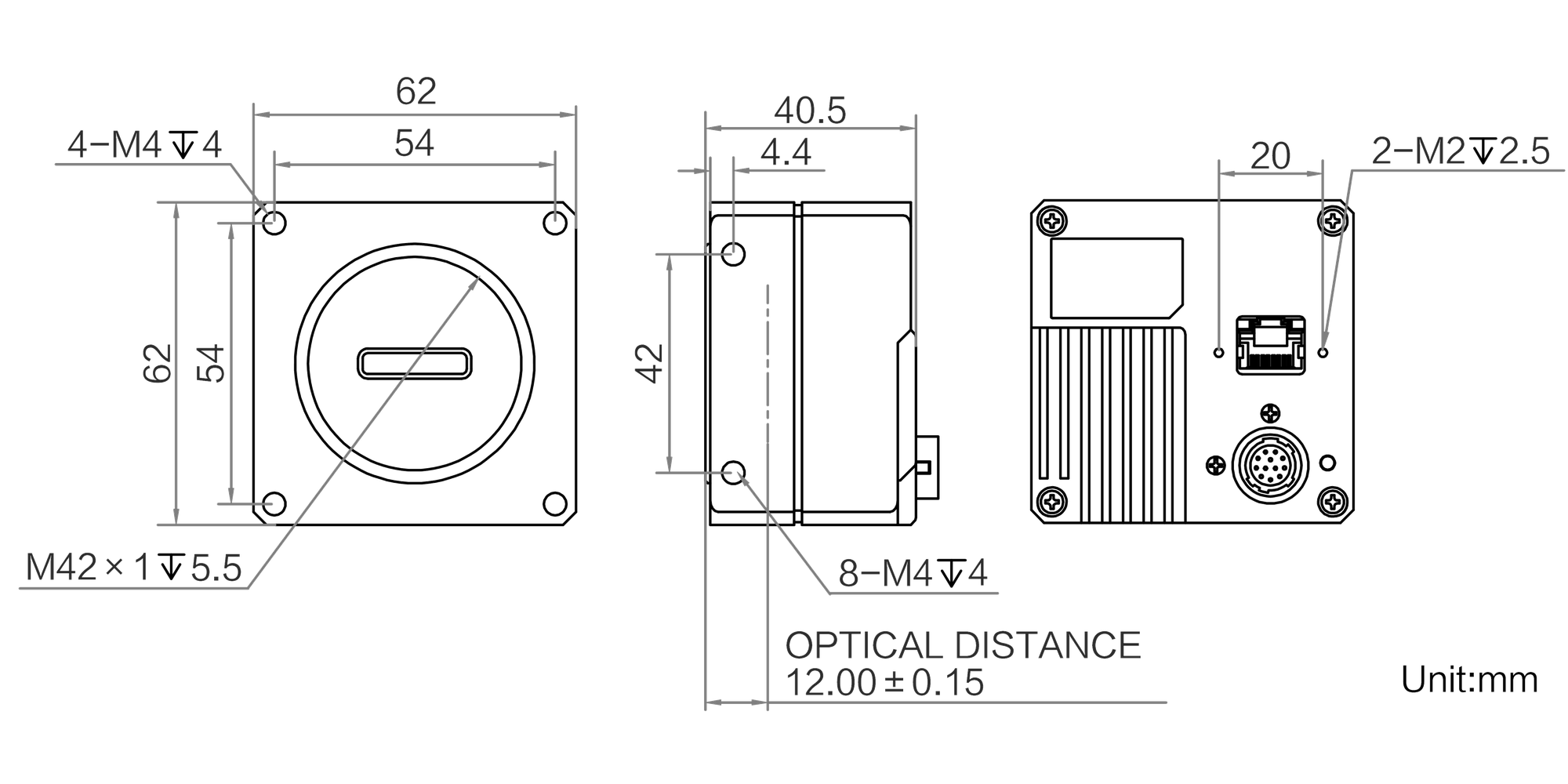

Dimensions

* Product data may cause Differences due to environmental factors. The company does not bear the consequences.

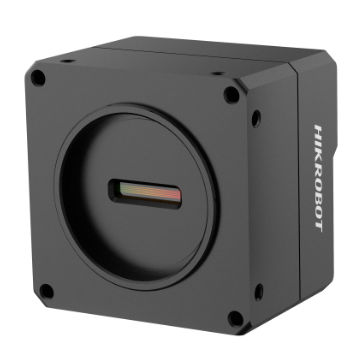

MV-CL024-91GC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CL024-91GC

Model

Model	MV-CL024-91GC
Name	2k mesh line array, color

Performance

Sensor Type	CMOS
Pixel Size	7μm
Resolution	2048 × 3
Max. Line Rate	Basic line frequency:58 kHz@ Mono 8/Bayer RG8, 29 kHz@ Bayer RG10/12, 19 kHz@ RGB 8/BGR8 HB peak line frequency:70 kHz@ Bayer RG8/Mono 8, 40 kHz@RGB8
Dynamic Range	68 dB
SNR	44.7 dB
Gain	Support 1.0×
Exposure Time	3 μs ~ 10 ms
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure, Pulse Width controlled exposure
Mono/Color	Color
Pixel Format	Mono 8 Bayer RG 8/10/12 RGB 8,BGR 8
Binning	Support 1 × 1,2 × 2,4 × 4
Mirror	Support horizontal Mirror
Trigger Mode	External trigger, internal trigger
External Trigger Mode	Line trigger, frame trigger, line + frame trigger

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s) Compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin P10Connector provides Power Supply and I/O:4 configurable inputs and outputs (Line 0/1/3/4), supports single-ended/differential
Power Supply	12 ~ 24 VDC, supports PoEPower Supply
Typical Power Consumption	5.7 W@12 VDC

Mechanical

Lens Mount	M42* 1.0, Flange Back Focal Length12 mm; Can be transferred to F ports, C ports and other threaded ports by adapter rings Lenses
Dimensions	62 mm×62 mm×40.5 mm
Weight	approx. 256 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature-20 ~ 55°C, Storage Temperature-30 ~ 80°C
Humidity	5%~90%RH No condensation

General Specifications

Software	MVS or third-party GigE Vision Protocol Software
Operating System	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol / Standard	GigE Vision V2.0,GenICam
Certification	CE,RoHS,KC
