Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Support for RGB true color imaging
Rich ISP processing technology, support for Gamma correction, flat-field correction, Gain adjustment, etc.
Support for bidirectional I/O wiring, input/output can be flexibly configured
Compact Mechanical design, Camera front and side panels have mounting holes, allowing flexible installation
Compatible with GigE Vision V2.0 protocol and GenICamStandard

Ordering Model

MV-CL043-A1GC

Dimensions

* Product data may be caused by environmental factors Differences The company will not bear the consequences arising therefrom.

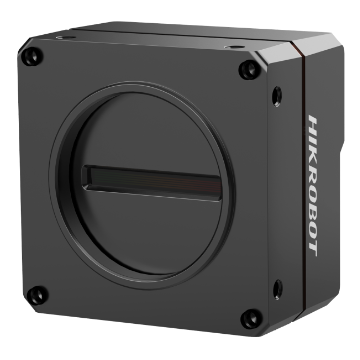

MV-CL043-A1GC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CL043-A1GC

Model

Model	MV-CL043-A1GC
Name	4K 7μm, color, GigE

Performance

Sensor Type	CMOS
Pixel Size	7 μm × 7 μm
Resolution	4096 ×3
Imaging Mode	Support 1-Line
Max. Line Rate	Basic line frequency:28 kHz@Bayer 8/ Mono 8, 9 kHz@RGB8/BGR8 After increasing the line frequency of ROI:40 kHz@RGB8/BGR8 § 2,2 § Supports 1.0×, 2.0×, 4.0×
Dynamic Range	66.2 dB
SNR	39 dB
Gain	Support 1.0×, 2.0×, and 4.0×
Exposure Time	3 μs~10 ms
Shutter Mode	Supports automatic exposure, manual exposure, one-click exposure, and pulse controlled exposure
Mono/Color	Color
Pixel Format	Mono 8 Bayer RG 8 RGB 8,BGR 8
Binning	Supports 1 × 1,1 × 2, 1 × 4, 2 × 2, 2 × 4, 4 × 1,4 × 2, 4 × 4
Mirror	Supports horizontal Mirror
Trigger Mode	External triggering, internal triggering
External Trigger Mode	Line triggering, frame triggering, line + frame triggering

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s) Compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin P10Connector provides Power Supply and I/O:4 configurable inputs and outputs (Line 0/1/3/4), supports single-ended/differential
Power Supply	12 ~ 24 VDC
Typical Power Consumption	4.2 W@12 VDC

Mechanical

Lens Mount	M42* 1.0, Flange Back Focal Length12 mm; Can be transferred to F ports, C ports and other threaded ports with adapter rings Lenses
Dimensions	62 mm × 62 mm × 41 mm
Weight	approx. 280 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature-20~50°C, Storage Temperature-30~80°C
Humidity	5%~90%RH No condensation

General Specifications

Software	MVS or third-party GigE Vision Protocol Software
Operating System	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol / Standard	GigE Vision V2.0,GenICam
Certification	CE,RoHS,KC
