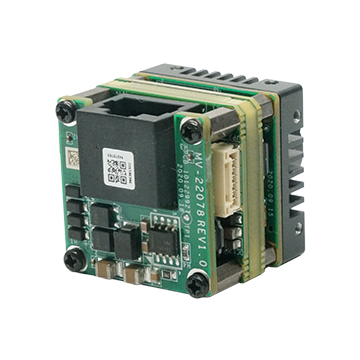

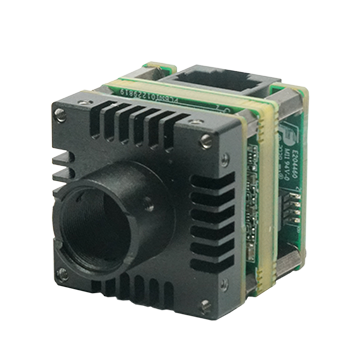

HIKROBOT CB Series Board-Level Cameras

MV-CB016-10GM-S

1440 × 1080, GigE, Black and white

Consulting quotation
MV-CB016-10GM-S

Product introduction

Functional characteristics

  • Support automatic or manual adjustment of Gain, Exposure Time, white balance, support manual adjustment of Gamma correction, LUT, Binning, etc.

  • Camera implanted noise reduction function, excellent image quality

  • Gigabit Network Interface, without relay, the maximum transmission distance can reach 100m

  • Compatible with GigE Vision V2.0 protocol and GenlCamStandard, seamless connection with third-party Software



Ordering Model 9§* The data involved in the product may cause

MV-CB016-10GM-S


Dimensions


* Data related to the product may be generated due to environmental factors and other factors Differences due to environmental factors, The company will not bear the consequences arising therefrom.

Ordering Model

MV-CB016-10GM-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

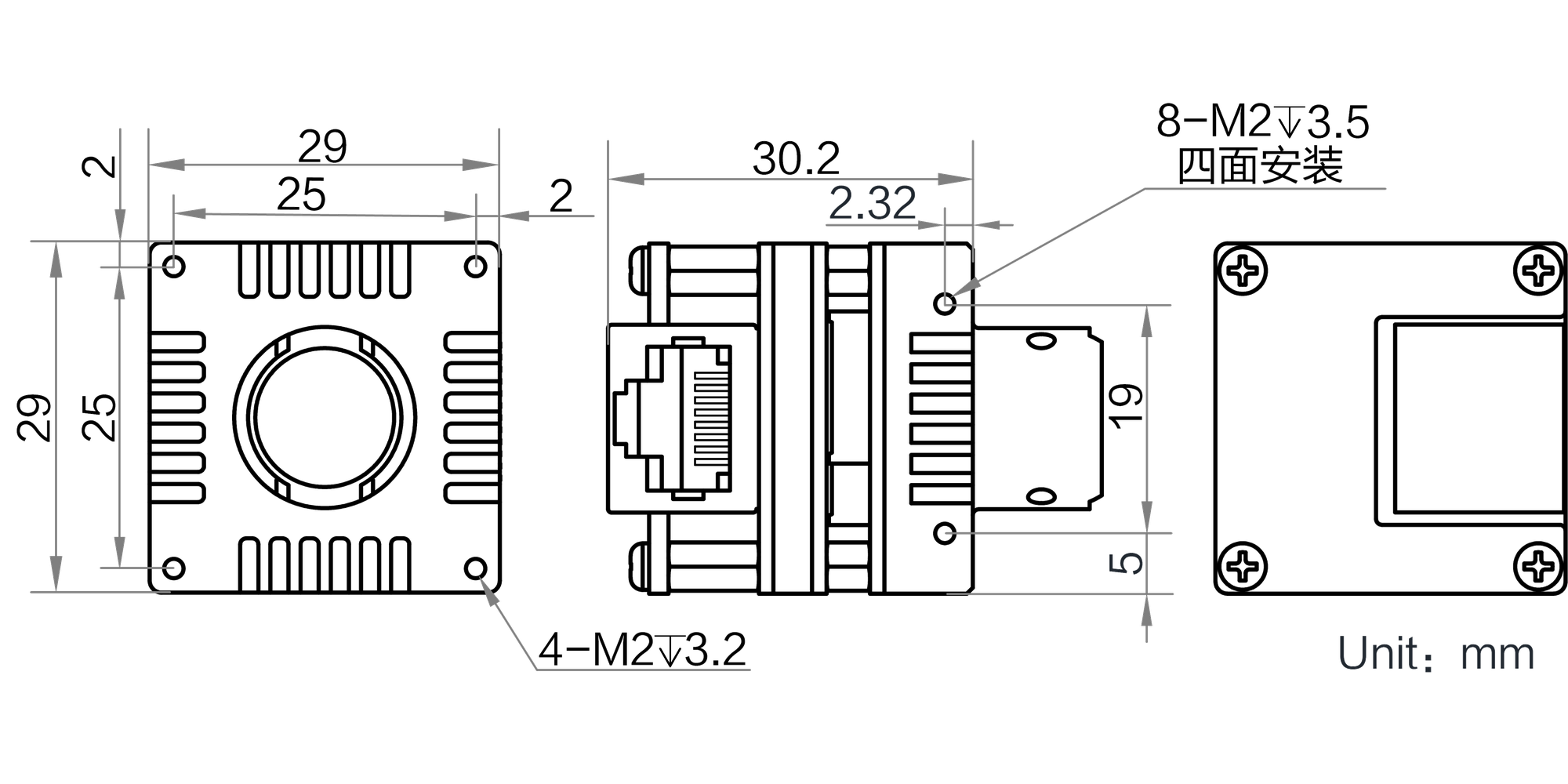

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CB016-10GM-S
Product Model MV-CB016-10GM-S
Sensor Model IMX296
Resolution 1440 × 1080
Max. Frame Rate 65.2 fps
Data Interface GigE
Mono/Color Black and white

Data download

Product manual· SDK ·Development documentation
