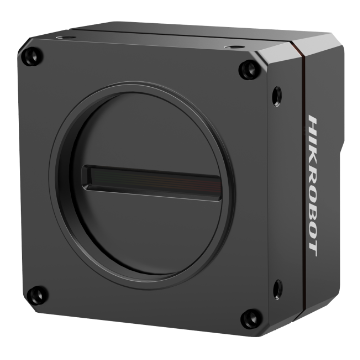

Name: HIKROBOT CL Series Industrial Line Scan Cameras
Brand: HIKROBOT
SKU: MV-CL021-60UM-OCT
Availability: InStock

Product introduction

Functional characteristics

Support for single-line and TDI imaging
Rich ISP processing technology, support for Gamma correction, flat-field correction, Gain adjustment, etc.
Support for bidirectional I/O wiring, and input/output can be flexibly configured
Compact Mechanical design, Camera front and side panels have mounting holes, allowing flexible installation
Compatible with GigE Vision V2.0 protocol and GenICamStandard

Ordering Model

MV-CL043-A1GM-V2

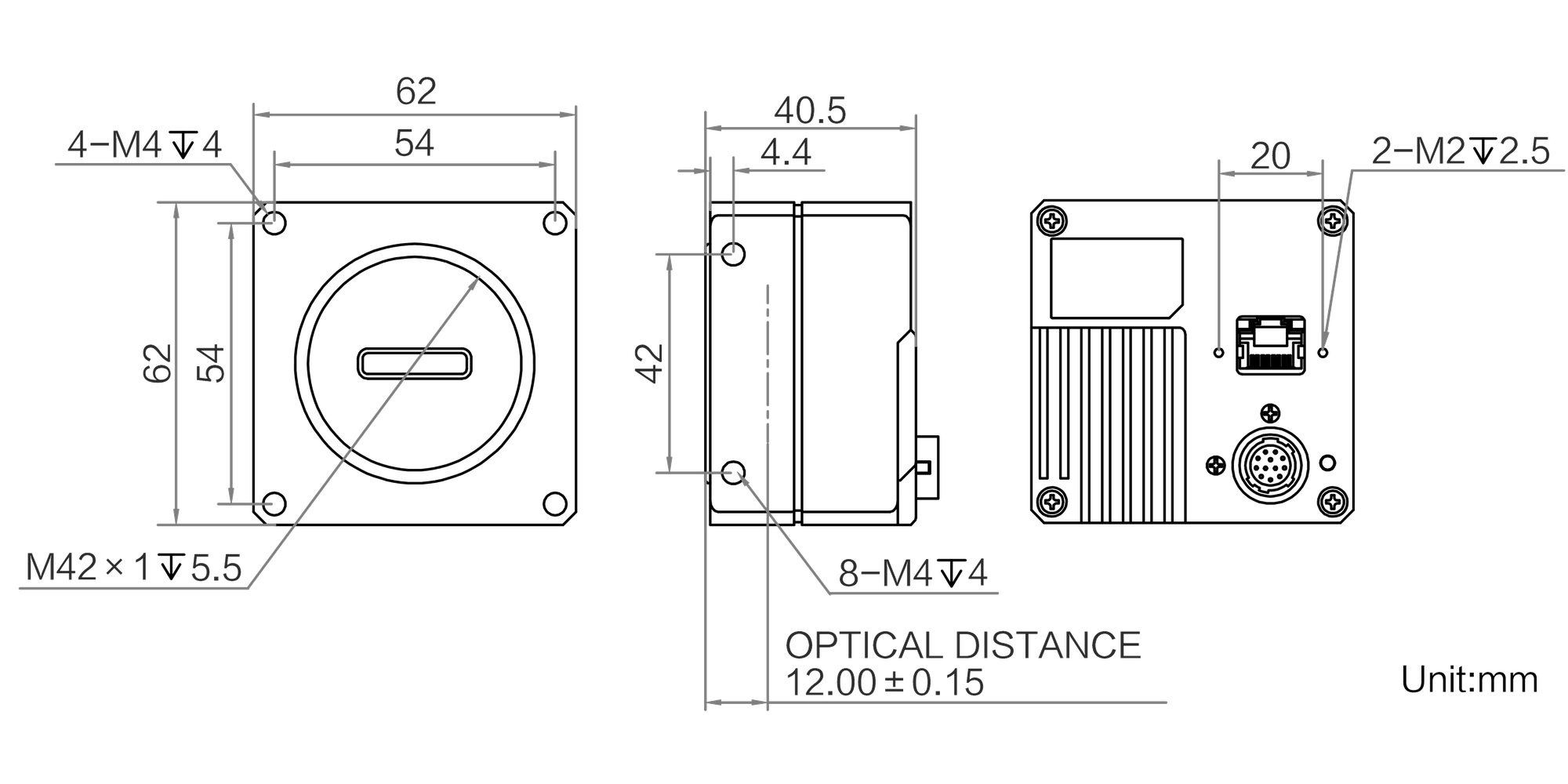

Dimensions

* Product data involved may be caused by environmental factors Differences The company will not bear the consequences arising therefrom.

MV-CL043-A1GM-V2

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-CL043-A1GM-V2

Model

Model	MV-CL043-A1GM-V2
Name	4K7μm screen black and white line array, 3TDI, narrow pitch version

Performance

Sensor Type	CMOS
Pixel Size	7 μm × 7 μm
Resolution	4096 × 3
Imaging Mode	Support 1 Line/2 TDI/3 TDI
Max. Line Rate	28 kHz@Mono 8, 14 kHz@Mono 10/12
Dynamic Range	66.2 dB
SNR	39 dB
Gain	Support 1.0×, 2.0×, 4.0×
Exposure Time	1 μs~10 ms
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure, pulse controlled exposure
Mono/Color	Black and white
Pixel Format	Mono 8/10/12
Binning	Support 1 × 1, 1 × 2, 1 × 4, 2 × 1,2 × 2, 2 × 4,4 × 1,4 × 2, 4 × 4
Mirror	Support Horizontal Mirror
Trigger Mode	External triggering, Internal triggering
External Trigger Mode	Line triggering, Frame triggering, Line + Frame triggering

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s) Compatible with Fast Ethernet (100Mbit/s)
Digital I/O	12-pin P10Connector provides Power Supply and I/O:4 configurable inputs and outputs (Line 0/1/3/4), supports single-ended/differential
Power Supply	12 ~ 24 VDC
Typical Power Consumption	3.9 W@12 VDC

Mechanical

Lens Mount	M42* 1.0, Flange Back Focal Length12 mm; Can be transferred to F ports, C ports and other threaded ports by adapter rings Lenses
Dimensions	62 mm × 62 mm × 41 mm
Weight	approx. 280 g
IP Rating	IP40 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature-20 to 50°C, Storage Temperature-30~80°C
Humidity	5%~90%RH No condensation

General Specifications

Software	MVS or third party support GigE Vision protocol Software
Operating System	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol / Standard	GigE Vision V2.0,GenICam
Certification	CE,RoHS,KC
